    Ergonomic No Light Leakage Hand Held Binoculars Li Battery Powered

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JHT640-35
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 3 months
    • Product Details
    • Company Profile

    Ergonomic No Light Leakage Hand Held Binoculars Li Battery Powered

    JHT102-S03-640PA Portable Hand-held Binocular

    Solid and light; low power consumption, long life, automatic, one button start, high-definition high magnification display; automatic screen closing, no light leakage, safe and reliable

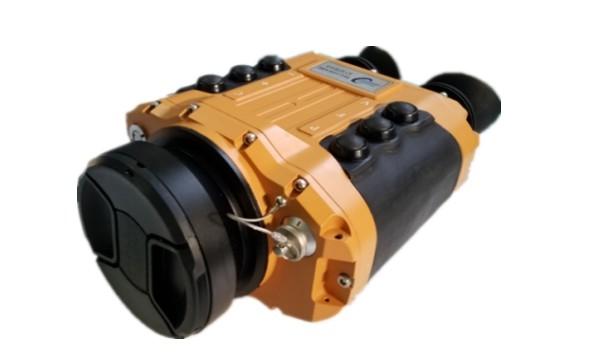

    1. Appearance


    2. Technical Specification

    2.1 Feature


    1) Thermal Camera


    a) Starting time for sensor<10s

    b) Menu function with focus, DDE, polarity setting, E-zoom, etc


    c) Image enhancement DDE ;


    d) Power consumption:≤2W@25℃;


    e) Communication : RS232 serial port, there is corresponding serial port command for each button operation;


    f) Automatic shutter correction after power-on. Auto correction is not allowed after image appears, but manual correction is allowed;Starting time for sensor<10s



    2) Structure


    a) Compatible with 640, 320 sensor


    b) Compliant with ergonomic design


    3) Battery


    a) 7.4V,1500~1800mAh( two pieces 18650)


    b) satisfied with -40℃ working requirement

    2.2 Performance


    1) Range performance


    Range

    performance


    Human(1.8×0.5m)


    Vehicle(2.3×2.3m)


    Vessel (10m²)

    Detection0.5km0.8km1.8km
    Recognition0.25km0.4km0.9km

    2) Parameter



    Detector

    TypeVox Uncooled FPA
    Pixel640×512
    Spectral band8~14µm
    Pixel size17µm

    Lens

    Focal length35mm
    FocusMotor-driven
    F#F 1.0
    FOV17.81°× 14.25°
    ThermalNETD≤50mk@25℃

    image performanceImage enhancementAuto image filter, DDE
    AGC

    Auto/Manual brightness contrast

    adjustment

    ImageBH/WH
    E-zoom2×, 4×

    Image display

    Eyepiece module800×600 OLED adjustable diopter
    Storage cardBuilt-in 32G
    Storage typePhoto shooting/video shooting, with time stamp
    Capacity>9000 images/2 hours
    FormatJPG

    Power supply system

    Battery typeChargeable Li-battery
    Working timeNo less than 4hours
    Charge typePower supply adapter
    External power supplyDC12V

    Physical

    Weight≤800g (subject to final design)
    Dimension≤300×80×80mm (subject to final design)
    Electrical interface

    Power supply, video PAL, communication

    RS232, USB

    Mechanical interface1/4’’ standard interface

    Environmental

    Working temperature-40℃~﹢60℃(except external monitor)
    Working humidityUp to 95%RH
    IP levelIP67
    Environmental testComplying with GJB150 standard
