    Unmanned Vehicle EO System With MWIR Cooled Thermal Camera

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH602-42021
    Certification : ISO9001
    Price : negotiation
    Payment Terms : T/T, L/C,, Western Union, MoneyGram
    Supply Ability : 50Sets/Year
    Delivery Time : negotiation
    • Product Details
    • Company Profile

    Unmanned Vehicle EO System With MWIR Cooled Thermal Camera

    HD 1080p Daylight Camera Electro-optic Tracking System MWIR Cooled Thermal Camera


    Production Introduction

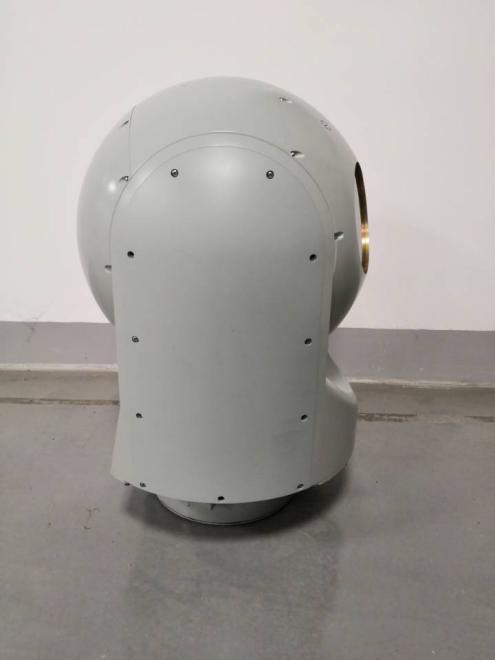

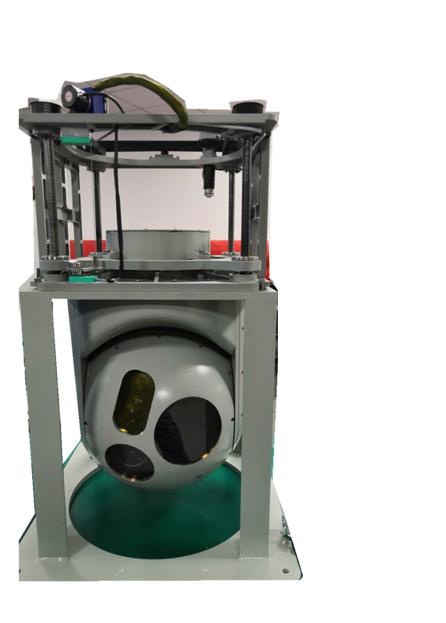

    JH602-42021 electro-optical surveillance system is a highly integrated optical-mechanical-electro system equipped with a HD 1080p daylight camera, MWIR cooled thermal camera and Laser Range Finder. It is provided for military and civilian requirements such as search, observation, reconnaissance and tracking sea surface /air targets, widely applied in airport security and maritime affairs.


    Main Functions

    • Stable output of daylight and IR image, and the image is required to be free of horizontal stripes, diagonal stripes and water ripple interference;
    • Detect and observe targets day and night;
    • Manual tracking of the target requires that the host computer send a tracking command to select a predetermined target and then automatically track the selected target;
    • Target distance measurement, and the effective distance value of the LRF is required to be 10km;
    • It can provide accurate azimuth, pitch and distance values of the target in real time;
    • Self-check and return the result;
    • Three sensors optical axis alignment to be consistent
    • Report the angle data and distance data of the captured target relative to the reference axis;
    • The system can receive information of targets specified by other navigation devices for searching and tracking.

    Technical Specifications

    System Specifications


    Stabilized platform2-axis 4-gimbal
    Azimuth coveragen×360°continuous
    Elevation coverage-110°~+20° (0° is horizontal ahead)

    Stabilization accuracy

    25μrad (1σ)
    Angular accuracy±0.1° (1σ)

    Physical Parameter


    Dimension≤Φ430mm×640mm(H)
    Weight≤45kg
    ColorAirplane grey
    Interface

    Video interface: synchronous RS422

    Communication interface: asynchronous RS422

    Thermal Camera

    Pixel640×512
    DetectorMWIR Cooled FPA
    Focusing range23~450mm (continuous zoom)
    FOV1.22° (H)×0.98°(V)~23.5°×18.9°
    Cool down time≤8min @room temperature
    Frame frequency50Hz
    NETD≤25mK@25℃
    Detection distance 16km (typical target2.3m×2.3m vehicle)
    Recognition distance9Km (typical target: 2.3m×2.3m vehicle)

    Daylight Camera

    Sensorcolorful CCD
    Resolution1920×1080 (16:9)
    Focal length13mm~360mm
    FOV19.5°×10.88°~0.79°×0.44°
    Fog penetrationYes
    Detection distance15km (typical target: 2.3m×2.3m vehicle)
    Recognition distance12km (typical target: 2.3m×2.3m vehicle)

    Laser Range Finder

    Wavelength1.06μm
    Range300m~10km, accuracy ≤±5m

    Environmental Parameter

    Operation temperature-40℃~+60℃
    Storage temperature-50℃~+70℃

    Power Parameters

    Gimbal

    DC24~36V,

    Power consumption

    : ≤500W (steady)

    Control boxDC24V, range 18V~36V; Power consumption: ≤3W (steady)

    Control Box

    As the command center of the system, the control box control content includes: joystick, working mode switching, thermal image and daylight image adjustment, laser ranging, target tracking, gimbal motion control, etc. The main components are shown in Figure 3, and the external interface includes a 12-pin aviation connectors. For the definition of the interface, please see PART 4 Appendix 2.3 interface definition of control box.

    Company Profile
    Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.

    Customer Distribution

    Service Process

    Products
    Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.

    Advantages

    Certificate & Honor
