    VOX Uncooled FPA Coastal Surveillance Radar System For Unmanned Ship

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JHS209-S05-100
    Certification : ISO9001
    Price : negotiation
    Payment Terms : T/T, L/C,, Western Union, MoneyGram
    Supply Ability : 50Sets/Year
    Delivery Time : negotiation
    • Product Details
    • Company Profile

    VOX Uncooled FPA Coastal Surveillance Radar System For Unmanned Ship

    Unmanned Ship Coastal Surveillance Radar System VOX Uncooled FPA

    Brief Introduction

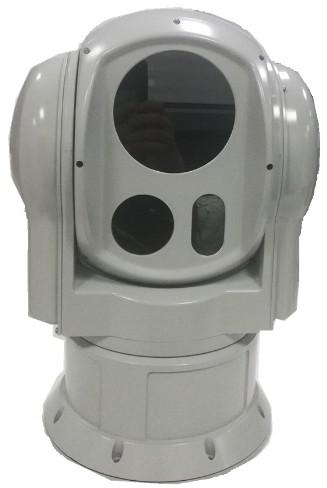

    The Shipboard photoelectric monitoring system is a highly integrated optical electromechanical integrated system, equipped with Hd 1080p 30 × daylight camera, uncooled LWIR thermal camera and 5km laser rangefinder. The system is a two axis and two frame stable platform. With the characteristics of compact structure and modular design, it is suitable for ships that meet the military and civil requirements of searching, observing, reconnoitering, tracking sea and air targets, and widely used in the fields of Navy, police, coast guard and maritime.

    Main Functions

    • Operation mode, azimuth and elevation data can be returned.

    • Fully sealed, waterproof, anti vibration, anti impact, long service life in harsh environment.

    • Two axes (azimuth and elevation) are stable, and high precision gyro and servo control system realize full coverage reconnaissance.

    • Support HD SDI image transmission and IP network video / image transmission

    • Small size, light weight, strong adaptability, low power consumption and high cost performance.

    • Video tracking function.

    • The high precision correction ensures the optical axis alignment of thermal camera, solar camera and laser rangefinder.

    Technical Specification

    THERMAL CAMERA
    DetectorUncooled FPA
    Pixel640*512
    Spectral band8μm~14μm
    Pixel17mm x 17mm
    Focal length80mm
    DAY LIGHT CAMERA
    Detector1/2.8" CMOS
    Focal length4.3~129mm, 30x
    Resolution1920×1080
    LASER RANGE FINDER
    Wavelength1.06μm
    Ranging300m~5km (visibility 10km, 3m*3m target)
    Measurement accuracy≤ ± 5m
    SERVO
    Stabilization accuracy≤0.5mrad(1σ)
    Turret direction rangeazimuth:360° continuous; elevation:+60°~-60°
    TURRET MAXIMUM ANGLE SPEED
    Azimuth≥30°/s
    Pitch≥30°/s
    ENVIRONMENTAL
    Operating temperature range-20ºC ~ +40ºC
    Storage temperature range-30ºC ~ +50ºC
    Tracking
    Tracking speed≥2.5FOV/S
    Min tracking contrast ratio5%
    Dynamic tracking accuracysuperior to 1mrad
    POWER
    Power SupplyDC 24V
    PHYSICAL
    Dimension Turret≤ Φ220× 400mm
    Turret Weight≤ 10kg

    Company Profile
    Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.

    Customer Distribution

    Service Process

    Products
    Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.
