    EO / IR Electro Optical Targeting System Thermal Camera And Day Light Camera

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH640-100
    Certification : ISO9001:2000, SGS
    Price : negotiation
    Payment Terms : T/T , , L/C
    Supply Ability : 50Sets/Year
    Delivery Time : 3months after received payment
    • Product Details
    • Company Profile

    EO / IR Electro Optical Targeting System Thermal Camera And Day Light Camera


    Electro-Optical Infrared (EO/IR) Tracking System Thermal Camera and Day Light Camera

    1. Introduction

    The EO/IR tracking system is an integrated device that composes the optical, electric, machinery, control and signal processing unit, utilizing electro-optical detector as sensitive component, and the electro-mechanical control to stabilize the sight-axis, thus realize the target capture, tracking, aiming and stabilization function. The following technology includes target recognition & auto-tracking technology; EO tracking servo control; control technology application; mechanism design and signal processing are critical to determine EO tracking system performance. Recently the advanced EO tracking system is equipped with sensors with different wave and type like TV, IR, LRF, IR localizer, and the design of which should consider the following factors: operation distance, environment, target characteristics, optics aperture & focal length, stabilization accuracy, weight and volume.

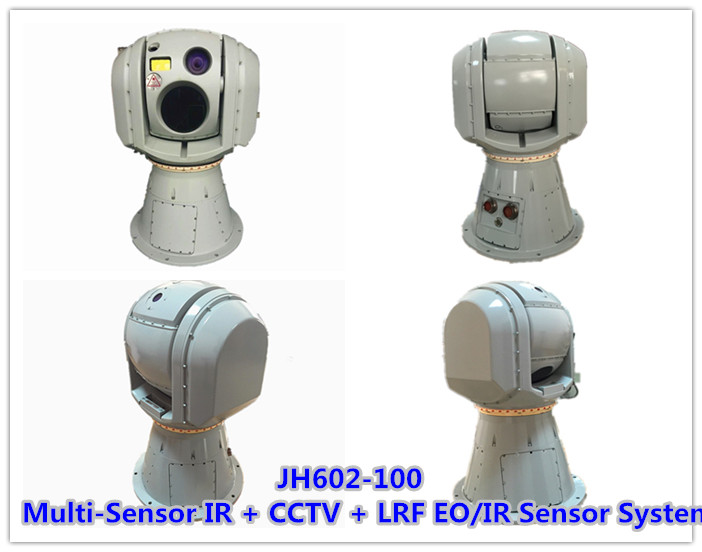

    JH640-100 system is a part of the vehicle-borne fire control system, capable of keep stable aiming and pointing even when the vehicle attitudes changes or on shock condition. It is equipped with a high resolution thermal camera, a TV and a laser range finder (LRF) for target search, recognition, tracking and ranging at day & night, as well as real-time provide target angle, distance and video. In addition to be used as alone, JH640-100 system also capable of receiving slave instruction from FCS (fire control system) and working with various gun and missile launch system to attack ground and air target. On the non-combat, this system can also serve as assistant navigation and warning for the vehicle at night.


    2. Product Function & Features


    2.1 Product Function

    1) Insulate carrier disturbance and stabilize LOS (line of sight)

    2) Target observation, searching and aiming at day & night.

    3) Target detection, recognition and identification at day & night.

    4) Auto and manual target tracking

    5) Target ranging

    6) Report angular and distance of the captured target relative to the reference axis.

    7) System self-check and report test result.

    2.2 Product Features

    • High precision optical system includes fixed IR lens, optical continuous zoom TV and LRF, together with intelligent zoom control system, make sure clear image and stable optical axis within the 8mm~125mm focus length.
    • Built-in high integrated FPGA processor with fast processing and intelligent algorithm realizes real-time tracking; tracking algorithm provides relative tracking and centroid tracking algorithm for customer option according to the target characteristics under different fields so that realize high quality tracking.
    • Two axis stabilized platform combining with high precision gyro and servo control system, ensures system have good stability and high precision tracking performance.
    • Military-class components with high reliability enables long life under severe environment.

    5) Full-sealing and high level waterproof optic-mechanical- electro integrated design meets military standard.


    Specifications:

    THERMAL CAMERA
    DetectorLWIR Uncooled FPA microbolometer
    Pixel640x512
    Spectral band8μm~12μm
    FOV6.2° x 5.0° ( electronic zoom: 2×)
    Focal Length100mm, F#:1
    DAY LIGHT CAMERA
    Detector752*582, 1/3" white/black CCD
    FOV55.8° x 2.1° continuous zoom
    Illumination Range200Lx ~105Lx
    LASER RANGE FINDER
    Wavelength1.06μm
    Ranging300m~5km (visibility 10km, 8m*2m target)
    Measurement accuracy≤ ± 5m
    SERVO
    Stabilization accuracy≤ 0.2mrad (1σ)
    Turret direction rangeAzimuth: ± 180° (0°is bow direction); Pitch: -20°~+75°
    TURRET MAXIMUM ANGLE SPEED
    Azimuth≥50°/s
    Pitch≥50°/s
    Video signal formatCCIR PAL standard B/W
    CommunicationRS232
    ENVIRONMENTAL
    Operating temperature range-40℃ ~ +60℃
    Storage temperature range-40℃ ~ +65℃
    POWER
    Power SupplyDC 24V/15A, DC28V/15A
    Power Consumption

    DC24: ≤350W

    DC28V : ≤420W

    PHYSICAL
    Dimension (L×W×H)

    Turret:Φ400×630mm

    Electronic cabinet: 159x346.8x185.5mm

    Control box:364×200.5×137.5mm

    Weight

    Turret:≤70kg

    Electronic cabin: ≤8.2kg

    Control box:≤1.2kg
