    Border/Coastal Surveillance Intelligent EO/IR Tracking System With Thermal Camera And Daylight Camera

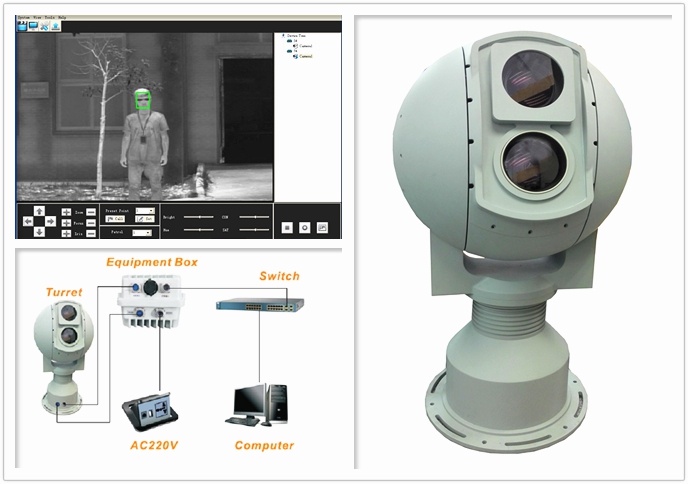

    Border/Coastal PTZ Electro-optical Surveillance System (EOSS) JH320-150/75

    The system is a night vision product with two working mode of day mode and night mode.The day light camera delivers the imagery at day mode and thermal IR camera at night mode.IR thermal imaging delivers crisp image featured with good hidden property and no limit from light source. The good combination of day light TV and IR thermal camera realizes the day an night continuous surveillance with the range performance of day light TV far to 10km, thermal camera human detection far to 3600m.This system adopts some exclusive technology in the product material and processing with strong aluminum alloy and stainless steel material and special sealing technology.JH320-150/75 is widely deployed for real-time surveillance application of night , harsh environment, long range, wide scale, and hidden monitoring.

    Features
    1. Integrated dual-sensor design of long range day light camera and IR thermal camera with warning function for day & night monitoring
    2. Day light camera feedback some information, such as, position, focal length of the lens in real time

    3. Adjustable Continuous zoom and focusing speed

    4. Support patrol scanning and repeat positioning

    5. IP66 Protection level for long time outdoor use

    Technical Specification

    DAYLIGHT CAMERA

    Focal length

    12.5~750mm,60X Zoom

    FOV

    0.5°~28.7°

    F#

    F3.8~F22.C

    Sensor

    1/1.8''Progressive Scan CMOS

    Video Control

    AGC, AWB, support day/night mode switch auto/manual

    Resolution

    1080p,Support three bit stream

    TURRET TECHNICAL PARAMETERS

    Pan Range

    360°

    Tilt Range

    -80°~+80°

    Pan Speed

    0.1°~30°/s

    Tilt Speed

    0.1°~25°/s

    Acceleration

    Max:40°/s2

    Protocol

    Pelco-D,Pelco-P

    Baud Rate

    2400/4800/9600/19200 bps

    ENVIRONMENTAL

    Operating Temperature

    -40°C~+60°C

    Storage Temperature

    -50°C~+70°C

    Protection

    IP66

    Salt Fog

    PH6.5~7.2, 48 hours continuous spray

    POWER

    Power Supply

    DC24V

    Consumption

    ≤180W

    PHYSICAL

    Weight

    ≤110kg

    Size

    605mm×605mm×1160mm(L×W×H)

    Application Environment

    Outdoor
