    Infrared Lwir Uncooled 384X288 Vox Thermal Camera Sensor Module 46mm ×48.9mm ×42mm

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : UWA384CX-H09-F
    Certification : ISO9001:2000
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100Sets/Year
    Delivery Time : negotiable
    • Product Details
    • Company Profile

    Infrared Lwir Uncooled 384X288 Vox Thermal Camera Sensor Module 46mm ×48.9mm ×42mm

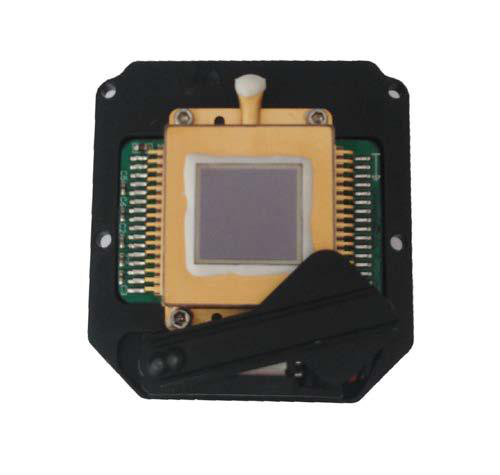

    Infrared LWIR Uncooled 384x288 VOx thermal imaging camera module


    Description
    This LWIR uncooled thermal imaging module is a matured and high reliable product independently developed by our company. It utilizes high-quality material and top-end manufacture technology. Currently, it has been widely used in the aerospace, aviation, military, armed police, public security, customs, security, monitoring, petroleum, chemical, electric power and other industries.


    Features

    • Suit long-range, multi-task search and observation
    • Miniature size and light weight
    • High sensitivity and high resolution
    • Standard interface , easy to integrate
    • Entire enclosure shell protection and compact design

    Technical Specification

    ModelUWA384CX-H09-F
    TypeVOx Uncooled Infrared LWIR
    Array format384×288, 25μm
    Spectral response8~14μm
    Power consumption≤1.7W@25℃
    Power supplyDC 6.5V~13V
    Time to image≤20s
    Operating temperature range-40℃~+60℃
    Storage temperature rage-55℃~+70℃
    NETD (@1/f. 25Hz)40mK
    Focus motor driverPWM adjustment
    Video output2 channel Analog video output, PAL formats
    Communication interfaceRS422
    Main control function

    Manual background calibration, Manual shutter calibration, Polarity setting, 1×~2× continuous zooming, Cross cursor display, Cross cursor position adjustment, Gain adjustment, Brightness adjustment,

    Digital Details Enhancement (DDE), Motorized focusing, Reticle display settings, System parameter reset

    Five type reticleInfrared Lwir Uncooled 384X288 Vox Thermal Camera Sensor Module 46mm ×48.9mm ×42mm
    Size46mm×48.9mm×42mm
    Weight≤90g
