    Continuous Zoom Miniature Airborne MWIR Cooled Thermal Camera For Remote Observation

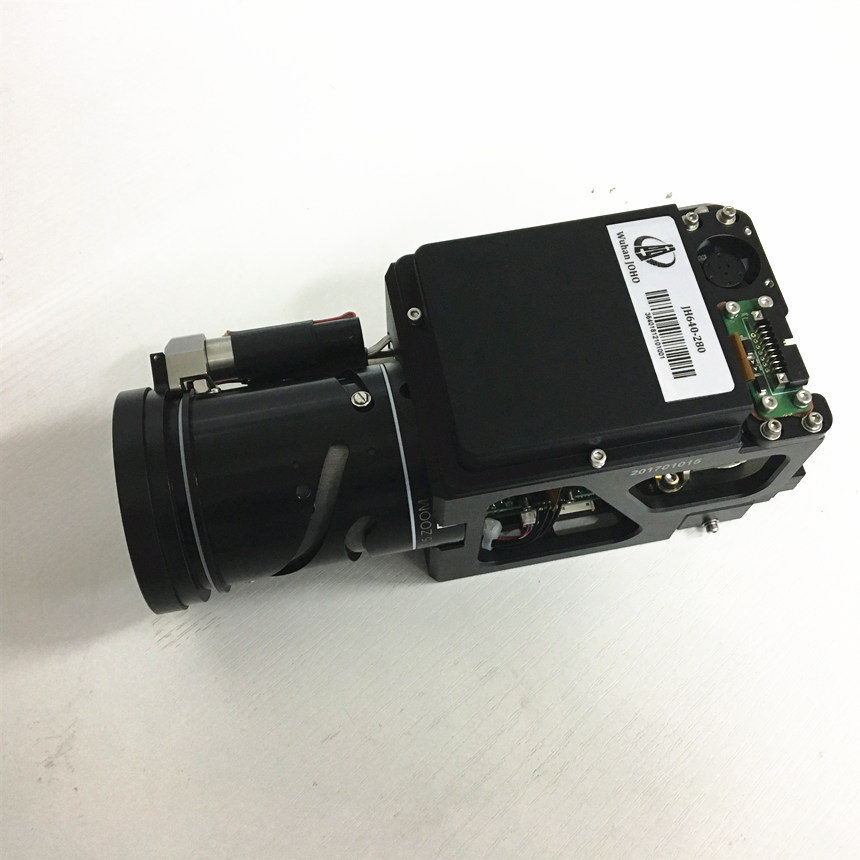

    JH640-280 Small Size Mwir Infrared Imaging Camera 640x512 High Resolution Sensor

    280mm long focal length medium wave cooled thermal camera is mainly used for remote observation. This mini-size thermal camera adopting high sensitivity medium wave cooled module and 640x512 module resolution is able to guarantee the clearer image; 15mm~280mm continuous zooming optical lens can recognize different target, such as person, vehicle or vessel effectively in a long distance.

    Applications
    1. Air-borne Air-to-ground Observation and Monitoring

    2. Search and Rescue

    3. EO/IR System Integration

    4. Airport, bus station and port security monitoring

    5. Forest Fire Warning

    Features
    1. 15mm-280mm continuous zoom optic system can meet long-range, multi-task search and observation

    2. Waterproof, compact and rugged design

    3. Standard interface , easy to integrate

    4. Miniature size and light weight can satisfy the UAV payload requirement

    5. Intelligent image enhancement optimizes the image quality

    Technical Specification

    DETECTOR
    Detector TypeCooled MCT FPA
    Pixel640x512
    Spectral Band3.7μm ~ 4.8μm
    Pitch15μm
    NETD≤23mk @ 25℃
    Cooling TypeStirling Cycle Cooling
    OPTICS
    Focal Length15mm ~ 280mm continuous zooming, F# :5.5
    FOV (H)x(V)1.97°x 1.58°~ 36.5°x 29.2°
    FUNCTION & INTERFACE
    Frame Frequency30Hz (50Hz customized)
    Analog VideoPAL
    Communication Control InterfaceRS232 / RS422( alternative)
    Shutter CalibrationManual / Automatic
    Background CalibrationYes
    PolarityBH / WH
    Electronic Zoomx 2 / x 4
    Cross Cursor DisplayOn / off
    Cross Cursor PositionAdjustable
    Image GainAdjustable
    Image BrightnessAdjustable
    Image EnhancementAdjustable
    Image ReversalAdjustable
    Power SupplyDC 24-36V
    Consumption≤10W @ 25℃
    ENVIRONMENTAL
    Operating Temperature-32℃ ~ 60℃
    Storage Temperature-40℃ ~ 70℃
    Vibration &Shock ProofGJB150.16-86 /MIL-STD-810F-514.5
    High & Low Temperature TestGJB150.3-86 / MIL-STD-810F-514.5
    PHYSICAL
    Weight≤1.6kg
    Dimension≤218mm x 98mm x 89mm
    ColorOxidation Black
    DETECTION RANGE
    Detection Range8km ( 2.3m x 2.3m vehicle ) 4.5km ( 1.7m person )
