    Various FOV lens ,cooled HgCdTe FPA Thermal Imaging Module For Thermal Security Camera System

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH202-320A/B
    Certification : SGS, ISO9001:2000
    Price : negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 500Sets/Year
    Delivery Time : 1months after received payment
    • Product Details
    • Company Profile

    Various FOV lens ,cooled HgCdTe FPA Thermal Imaging Module For Thermal Security Camera System

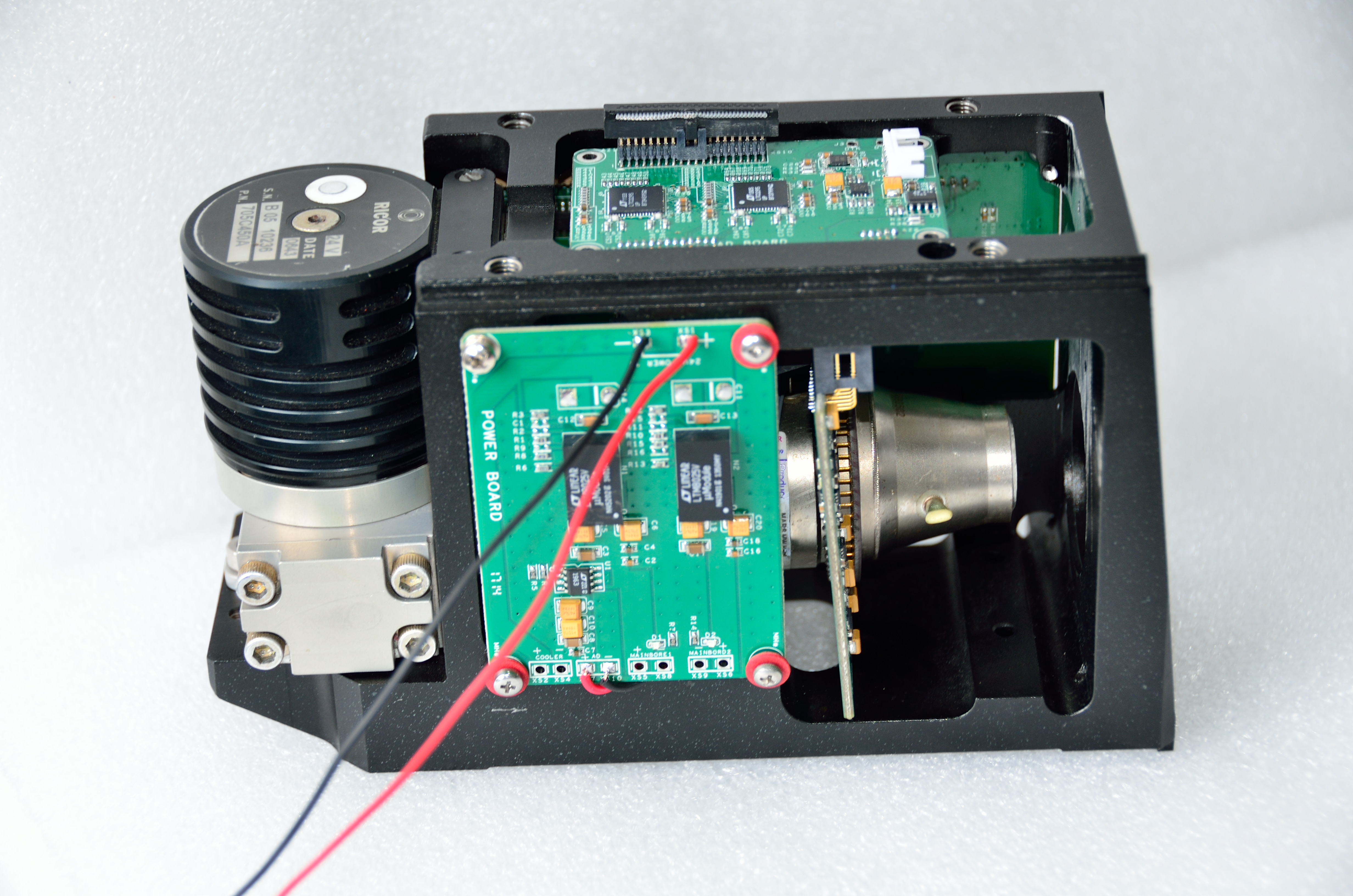

    Medium-wave Cooled HgCdTe FPA Thermal Infrared Imaging Module


    Description:


    The mid-wave cooled HGCdTe FPA thermal infrared imaging module is a cooled MCT thermal imaging module operating in the 3.7-4.8um (B mode: 7.7-11um) band, providing an extremely compact and high-performance solution for OEMs. The JH202-320A/B module provides 240mm/60mm, 300mm/75mm dual field of view and 600mm/150mm/22mm three-field lens.


    Features

    • Working in two spectral bands and equipped with cooled HgCdTe FPA , it has high thermal sensitivity and low noise

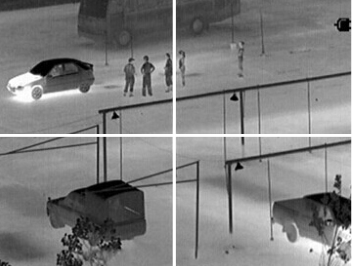

    • Advanced image processing algorithms provide high quality images
    • Three field of view, two field of view, fixed lens and no lens configuration
    • Different frame frequency
    • Multiple control interface and image output interface, easy to integrate
    • Sterling cooling system, compact structure, small volume and light weight

    Functions

    • Manual background/shutter calibration
    • White/black heat polarity switch

    • Manual/Auto image gain/brightness adjustment

    • Sampling voltage auto-focusing signal

    • Mirror image and flip the image horizontally or vertically


    Technical Specifications

    Detector
    Detector materialCooled MCT FPA
    Pixels320x256
    Pitch30µmx30µm
    Spectral band(A mode) 3.7~4.8µm (B mode) 7.7~11µm
    NETD< 15mK (F/2)
    Cooling typeStirling-cycle, Cooling temperature: < 100K
    Cooldown time: < 6min@20° C; < 8min@50° C
    Fill factor90%
    Optical Parameters
    Focus length (optional)300mm/75mm, 240mm/60mm, 600mm/150mm/22mm
    FOV1.8°x1.4°/ 7.3°x5.8° ; 2.3°x1.8°/9.1°x7.3°; 0.92°x0.73°/4°x3.2°/24.6°x19.8°
    Image presentation
    Video outputAnalog PAL/NTSC (Digital: Cameralink)
    Integral timeprogrammable
    Frame rate25, 50Hz, 100Hz, 200Hz
    Electric zoomx2, x4
    PolarityBH & WH
    Gain adjustmentAuto/Manual
    Power system
    Power supplyDC24V (DC8V~42V)
    Power consumption< 20W (cooling), <14W (steady operation)
    Operating temperature-40° C~60° C
    Storage temperature-40° C~60° C
    Command & Control
    Communication InterfaceRS232 / RS422
    Physical parameters
    Weight< 810g (lensless); <10.5kg (300mm/75mm); <9.8(240mm/60mm)
