    Cooled HgCdTe FPA Infrared Thermal Imaging Module , High Resolution MWIR Cooled Thermal Imaging Module

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH202-640
    Certification : ISO9001:2000
    Price : negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100Sets/Year
    Delivery Time : 1months after received payment
    • Product Details
    • Company Profile

    Cooled HgCdTe FPA Infrared Thermal Imaging Module , High Resolution MWIR Cooled Thermal Imaging Module

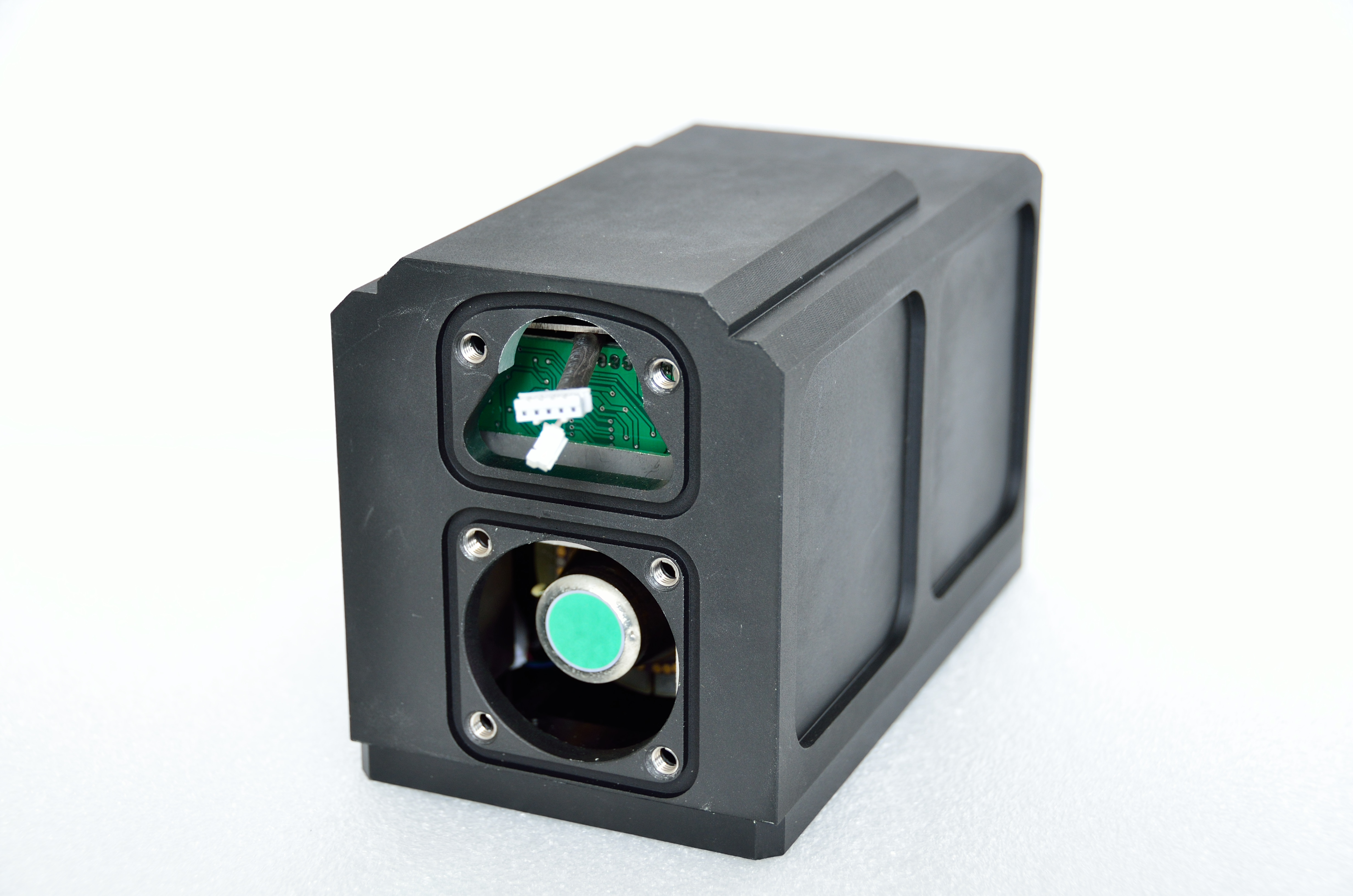

    JH202-640 MWIR Cooled HgCdTe FPA Infrared Thermal Imaging Camera Module​


    Description:


    JH202-640 MWIR Cooled Infrared Thermal Imaging Module has been especially designed for original equipment manufacturers(OEM), It can be easily integrated into infrared sysems that require an advanced ,cooled high resolution thermal imaging solution for extremely long range detection in all weather. It is able to be equipped with 90mm, 400mm/ 100mm,600mm/ 150mm/ 22mm,800~80mm and 1100~110mm continuous zoom for various missions.

    The JH202-640 MWIR Cooled Infrared Thermal Imaging Module is designed for original equipment manufacturers (OEM). It can be easily integrated into infrared systems that requires advanced cooling high-resolution thermal imaging solutions for use in various weather conditions to perform ultra-long-distance detection. It can be equipped with 90mm, 400mm/100mm, 600mm/150mm/22mm, 800~80mm and 1100~110mm continuous zoom which is suitable for various tasks.


    Applications:


    Provide cooled thermal imaging module required by complete thermal camera development and system integration for the research institutes and enterprises.


    Features:

    • Cooled HgCdTe FPA Microbolometer, low noise and high sensitivity
    • Stryn cycle refrigeration - compact structure, small size and light weight
    • A variety of control interface and image output interface for easy integration

    • FPGA intelligent image processing platform providing high frame rate and clear images

    • Large array with small pixel for high spatial resolution

    Functions:

    • Manual background / shutter calibration
    • WH/BH polarity switch

    • 2x real-time e-zoom

    • Manual/automatic image gain / brightness adjustment

    • Cross cursor display / hiding and position adjustment

    • Image mirror, horizontal and vertical rotation

    • Automatic focus, FOV switch, continuous zooming

    • System parameter self-check / reset

    Specifications:


    DETECTOR

    Detector

    Cooled HgCdTe FPA

    Pixel

    640×512

    Spectral band

    3.7~4.8um

    NETD

    ≤20mK(F/2)

    Cooling down

    ≤6min at 20ºC, ≤ 8min at 50ºC

    OPTICS

    Continuous optical zoom

    0.5°×0.4°~5°×4° with 1100mm~110mm zoom lens

    0.7°×0.55°~7°×5.5° with 800mm~80mm zoom lens

    Dual FOV lens

    1.4°×1.1°~5.5°×4.4° with 400mm/100mm lens

    VIDEO

    Analog video

    PAL/NTSC

    Frame frequency

    25Hz, 50Hz, 100Hz

    Digital video

    16bit TTL/LVDS/ Camera-link

    Communication interface

    RS232/RS422

    POWER

    Input voltage

    DC+24V (8~42 VDC optional)

    Consumption

    ≤20W (cooling), ≤14W (steady operation)

    ENVIRONMENTAL

    Operating temperature range

    -40ºC~+60ºC

    Storage temperature range

    -50ºC~+70ºC

    PHYSICAL

    Dimension

    145mm×76mm×88mm

    Weight

    820g
