    High Accuracy Two-Axis HD Daylight And VOX Uncooled FPA Detector IR Camera Systems For UAV

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JHP107-M145A
    Certification : ISO9001
    Price : negotiation
    Payment Terms : T/T, L/C,, Western Union, MoneyGram
    Supply Ability : 50Sets/Year
    Delivery Time : negotiation
    • Product Details
    • Company Profile

    High Accuracy Two-Axis HD Daylight And VOX Uncooled FPA Detector IR Camera Systems For UAV

    2-axis Infrared Camera and HD Daylight Camera Small UAV Camera Gimbal

    Introduction

    The small UAV gimbal JHP107-M145A adopts 2-axis stabilized platform with high accuracy. Built-in 10x continuous zooming 1080p HD day light camera and uncooled thermal camera with 35m lens. It is mainly applied on USV, unmanned ship to search, observe and track land or sea targets, which can satisfy the aerial photography, flight navigation, reconnaissance and other application demands.


    Funtion

    1. HD+IR dual sensor for day&night surveillance
    2. Wireless digital transmission
    3. 2-Axis gyro stabilization
    4. Standard communication interface
    5. Small size,light weight,compact structure,high asaptability,low power dissipation and great cost-efficiency
    6. Video tracking board realizes real-time traget tracking,support mamual and target locking
    7. Ground contrl terminal can control gimbal working modes and status

    Technical Specification

    ModelJHP107-M145A
    PlatformTwo-axis
    Azimuth rangen×360°
    Elevation range-35°~+110°
    Max angle speed≥60°/s
    Max angular acceleration≥80°/s2
    Stabilization accuracy≤0.5mrad
    Angular accuracy±0.1°
    IR Camera
    DetectorVOX Uncooled FPA
    Pixel640×512
    Spectrum7.5~13.5um
    Focal length35mm
    Pixel size17μm×17μm
    Frame frequency25Hz
    Digital VideoSD-SDI interface
    Daylight Camera
    Resolution1920×1080
    Focal length4.9mm~49mm(10× optical zooming)
    FOV7°03'×4°~49°28'×7°28'
    Frame frequency30Hz
    Digital VideoHD-SDI interface
    External Interface
    VideoHD-SDI interface(Two-way)
    CommunicationRS232/RS422/RS485
    Control protocolPelco-D and extended protocol
    Power SupplyDC 12V
    Power consumption≤15W
    Physical
    Dimension≤Φ145mm×205mm
    Weight≤2.5kg
    InstallationBelow belly
    ColorWhite&Black

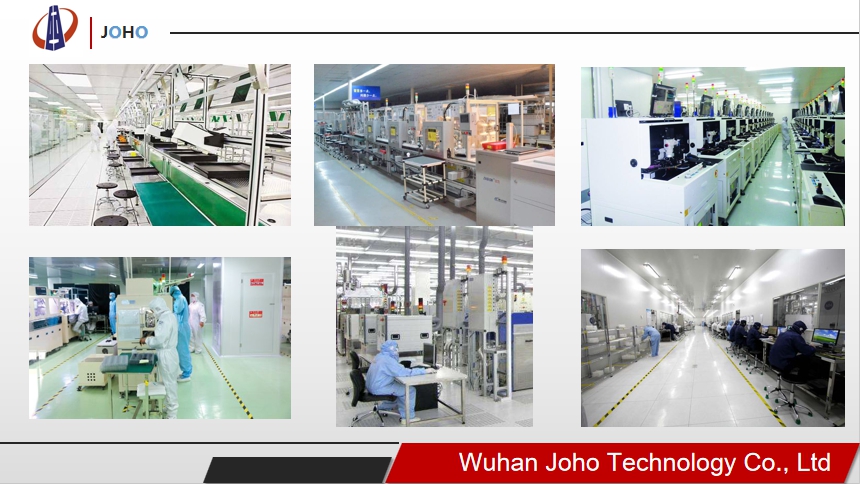

    Company Profile

    Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.


    Customer Distribution


    Service Process


    Products

    Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.


    Advantages


    Certificate & Honor
