    High Reliable 8μ​M ~ 12μM Uncooled Thermal Imaging Camera

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JHT102-S01-25A
    Certification : ISO9001:2000
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 2000Sets/Year
    Delivery Time : 15days after received payment
    • Product Details
    • Company Profile

    High Reliable 8μ​M ~ 12μM Uncooled Thermal Imaging Camera

    High Reliable 8μ​m ~ 12μm Uncooled Thermal Imaging Camera

    Brief Description

    JHT102-S01-640PA uncooled thermal imaging camera is equipped with a 640x512 resolution LWIR uncool focal plane array(FPA)detector and a 35mm lens. The detector transform the target thermal radiations to electrical signals, after the process of a detailed analysis of electrical signals on image processing circuit boards, detector output analog and digital video signals together; the host PC control the thermal camera via RS232 communication interface. The basic principle diagram refers to Figure 3.


    Features

    JHT102-S01-640PA uncooled thermal imaging camera is a matured and high reliable product which developed by our company independently to meet military standard. To ensure the thermal camera can totally meet the military standard, we choose high-quality material and adopt top-ranking manufacture technology. Now the thermal camera has widely applied in the fields of aerospace, military industry, border & coast defense, city safety surveillance, oil, chemical industry and electric power.


    Technical Specification

    Detector
    Detector TypeVOx FPA Micro bolometer
    Pixel640 x 512
    Pitch17μm
    Spectral Band8μm ~ 12μm
    NETD<45mk@25℃,F=1.0
    Optics

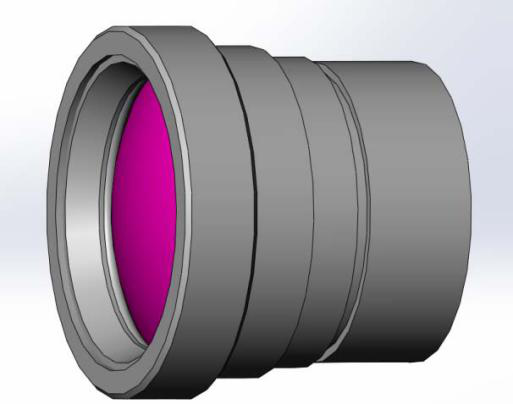

    Focal Lenght35mm
    F#F1.0
    Practical Imaging Planeφ14
    Wave Length8μm ~ 12μm
    Exposed Mirror Surface CoatingsDLC
    FOV17.7° x 13.3°
    Focusing ModeFixed focus / optical athermalization
    Weight≤90g
    Image Display
    Frame Frequency25Hz
    Analog VideoPAL composite video
    Onboard Image Processing

    Manual/Auto brightness/gain adjustment;

    WH/BH;

    Image enhancement

    Interface
    Integrated Interface

    Hirose Connector Interface-DF12-50DS-0.5V(86)

    Pin definition meets to appendix.

    CommunicationRS232
    Power Supply
    Power SupplyDC7V~12V
    Consumption≤1.6W@25℃
    Environmental
    Operating Temperature-40℃ ~ +60℃
    Storage Temperature-50℃ ~ +70℃
    Physical
    Weight≤155g
    Dimension(L×W×H)

    Core: 44.5mm×44.5mm×26.5mm

    Core+Lens:64.1mmx44.5mmx47mm

    Communication & Control InterfaceRS232
