    High Precision Multi Sensor Uncooled Thermal Camera Surveillance System

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JHS640-240P4
    Certification : ISO9001:2000
    Supply Ability : 50 Sets/Year
    Delivery Time : Two months
    • Product Details
    • Company Profile

    High Precision Multi Sensor Uncooled Thermal Camera Surveillance System

    High Precision Multi Sensor Uncooled Thermal Camera Surveillance System


    Airborne Installations: Fixed-wing, Rotary-wing, UAVs

    Application: Surveillance & Reconnaissance, Covert Intelligence, Search & Rescue, Target Recognition and Tracking


    Features

    1. Day and night detection, recognition and recognition of specific targets
    2. Multiple tracking algorithms, real-time acquisition and reporting of target location
    3. High precision gyro stabilization
    4. The optional built-in IMU provides the carrier attitude universal joint
    5. Wireless transmission
    6. Standard communication interface
    7. Military grade components with high reliability and long life in harsh environment
    8. Ground control station, easy to operate

    Technical Specification

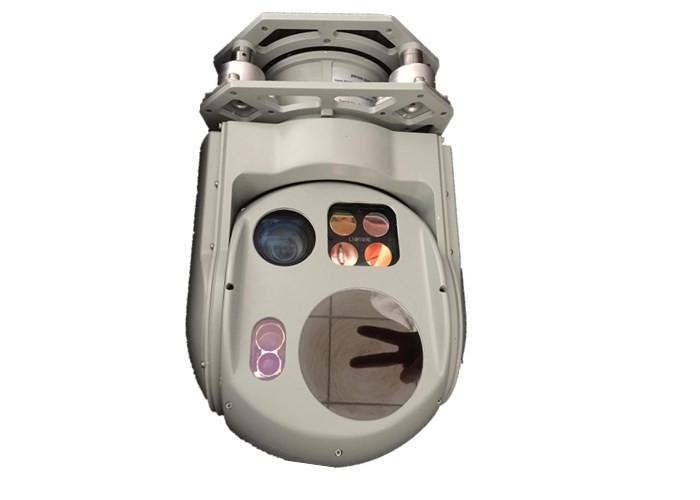

    JHS640-240P4 Multi-sensor UAV Gimbal
    Thermal Camera
    DetectorUncooled FPAPixel640×512
    Spectral band8μm~12μmFocal length75mm
    NETD≤50mK@25℃Recognition distance

    ≥1km

    ( person:1.8×0.5m)

    Day Light Camera
    DetectorCMOSFocal length20x optical zoom
    PixelHD1920×1080FOV55.4°~ 2.9°
    Laser Range Finder
    Wavelength1.55μmAccuracy≤ ± 5m
    Range20m~2km (visibility 10km, 3m*3m target)
    Multi-spectral Camera
    Wave length500nm-800nmPixel1280x1024
    Frame rate≥50HzRecognition distance

    ≥500m

    ( person:1.8×0.5m)

    System Parameter
    Azimuth360°continuousElevation-110°~+20°
    Stabilization accuracy≤0.5mrad (1σ)CommunicationRS422
    Power supplyDC 9-36VPower consumption≤60W
    DimensionΦ240× 300mmWeight≤7kg

    High Precision Multi Sensor Uncooled Thermal Camera Surveillance System High Precision Multi Sensor Uncooled Thermal Camera Surveillance System

    Company Profile
    Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.

    Customer Distribution

    Service Process

    Products
    Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.
