    640×512 MCT Cooled Thermal Imaging Camera For EO/IR System Integration

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH640-240
    Certification : ISO9001:2000
    Price : negotiation
    Supply Ability : 100set/year
    Delivery Time : negotiation
    • Product Details
    • Company Profile

    640×512 MCT Cooled Thermal Imaging Camera For EO/IR System Integration

    640×512 MCT Cooled Thermal Imaging Camera For EO/IR System Integration

    JH640-240 Dual-FOV MWIR Cooled Thermal Camera is a matured and high reliability product with military standard. Built on high sensitivity 640*512cooled FPA detector with 240mm/60mmDual-FOV lens, it achieves the mission of fast status awareness and target recognization with wonderful wide and narrow field of view in one camera. It adopts the advanced image processing algorithms which greatly enhance the image quality and vamera performance under special environment. It allows operation in any harsh environment with the design of total weather-proof.


    Features

    1. Border/coastal security surveillance and monitoring
    2. EO/IR system integration
    3. Search and rescue
    4. Airport, bus station, sea port and dock monitoring
    5. Forest fire prevention

    Technical Specification

    Detector
    DETECTOR MODELSCORPIO DEVICESLEO DEVICES
    DETECTOR TYPEMCT
    PIXEL640×512
    Spectral Band3.7μm~4.8μm
    Pitch15 μm
    NETD≤20mk@25℃≤25mk@25℃
    Cooling typeStirling Cycle Cooling
    Lens
    Focal Length240mm,60mm Dua-Fov
    F #4
    FOV

    2.3(H)×1.8(V)
    9.1°(H)×7.3°(V)

    Communication interface
    Frame frequency50HZ(MAX:100HZ, (Customized is available)50HZ
    Cooling Down Time≤8 min (at normal temperature)
    Analog VideoPAL camera link
    Digital videoProducts-end sends chip DS90CR285MTDX/NOPB(Receiving end is DS90CR286AMTDX/NOPB)
    CommunicationRS232/RS422( alternative)
    PolarityBH/WH
    Electronic Zoom×2/×4
    Power SupplyDC 24~32V
    Consumption≤15W at 25℃ in steady operation; ≤30 W at 25 ℃ in peak power≤10W at 25℃ in steady operation; ≤30 W at 25 ℃ in peak power
    Environmental
    Operating Temperature range-32℃~55℃
    Storage Temperature range-40℃~70℃
    PHYSICAL
    Weight≤ 3kg≤ 2.8kg

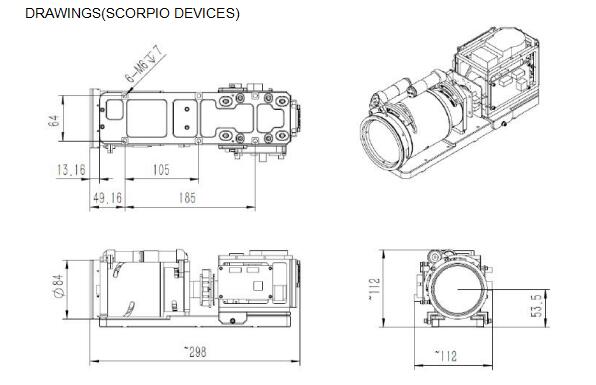

    DimensionRefer to drawingsRefer to drawings

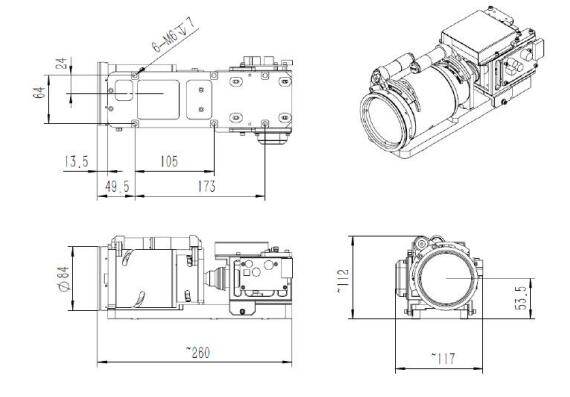

    DRAWINGS(LEO DEVICES)

    Company Profile
    Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.




    Customer Distribution

    Service Process

    Products
    Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.




    Advantages

    Certificate & Honor
