    324×256 LWIR Uncooled VOx FPA Coastal And Borden Intelligent Electro Optics Systems

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH320-150/75
    Certification : ISO9001:2000, SGS
    Price : negotiation
    Payment Terms : T/T , D/A
    Supply Ability : 50Sets/Year
    Delivery Time : 2-3months after received payment
    • Product Details
    • Company Profile

    324×256 LWIR Uncooled VOx FPA Coastal And Borden Intelligent Electro Optics Systems

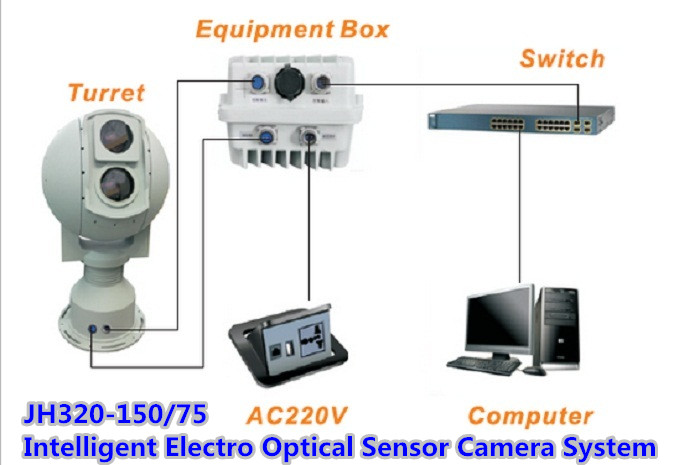

    JH320-150/75 Intelligent Electro Optical Sensor IR Camera And Daylight Camera System


    Description:


    JH320-150/75 Electro Optical Intelligent Sensor IR Camera & Daylight Camera System is an intelligent IP network establishing a "virtual fence" near the coast/border to detect intruders and other threats from the sea or border in the total darkness and bad weather.


    This electro optical intelligent sensor system is either to be used as independent or connecting with radar under"slaving mode", capable of automatically turn to target designation area.


    This electro optical intelligent sensor system adopts high-speed fiber optic data transmission to ensure continuous video record at long range.


    Applications:


    1. Coastal and Borden Surveillance

    2. Intelligent monitoring

    3. Middle-distance performance

    4. Picture and video recording


    Features:


    1. Configurable sensor and lens to satisfied various missions.

    2. Continuous zoom and adjustable focusing speed is available.

    3. High precision turret position, less than 0.1°.

    4. Support patrol scanning and repeat positioning.

    5. Simple connection against dust and water ingress, resist to corrosion, tarnishing, salt fog.

    6. Modular design, easy for repair and upgrade


    Specifications:


    THERMAL CAMERA

    Detector

    Uncooled VOx FPA

    Pixel

    324×256

    Spectral band

    8~14μm

    FOV

    3.1°×2.4°~15.2°×12.2°

    IFOV

    0.17~0.83mrad

    NETD

    ≤50mK@F1.0,300K

    DAYLIGHT CAMERA

    Focal length

    12.5~750mm,60X Zoom

    FOV

    0.5°~28.7°

    F#

    F3.8~F22.C

    Sensor

    1/1.8''Progressive Scan CMOS

    Video Control

    AGC, AWB, support day/night mode switch auto/manual

    Resolution

    1080p,Support three bit stream

    TURRET TECHNICAL PARAMETERS

    Pan Range

    360°

    Tilt Range

    -80°~+80°

    Pan Speed

    0.1°~30°/s

    Tilt Speed

    0.1°~25°/s

    Acceleration

    Max:40°/s2

    Protocol

    Pelco-D,Pelco-P

    Baud Rate

    2400/4800/9600/19200 bps

    ENVIRONMENTAL

    Operating Temperature

    -40°C~+60°C

    Storage Temperature

    -50°C~+70°C

    Protection

    IP66

    Salt Fog

    PH6.5~7.2, 48 hours continuous spray

    POWER

    Power Supply

    DC24V

    Consumption

    ≤180W

    PHYSICAL

    Weight

    ≤110kg

    Size

    605mm×605mm×1160mm(L×W×H)

    Application Environment

    Outdoor
