Ultra-long Range Electro Optical Targeting System To Observe / Search And Track Target

JH602-1100EOTS Ultra Long Range Electro Optical Tracking System .pdf

Description:

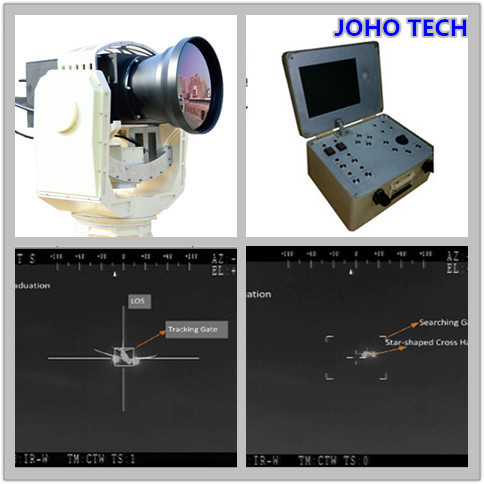

JH602-1100 Ultra-long Range Electro optical EO / IR targeting system is equipped with a high resolution 640x512 HgCdTe MWIR cooled thermal camera with 1100~110mm

continuous zoom lens which offers super long range security and surveillance application,

capable of observation, recognition, aiming and tracking target at day and night.

JH602-1100 system can work independently for ship navigation and surveillance at night, or

integrated into a larger surveillance system, capable of receiving slaving instruction from radar.

Applications:

Applied to different carriers(such as aircraft, vessel and vehicle) to search, observe and track

target with collimation control, navigation and early warning functions.

Features:

1. High accuracy continuous zoom lens matches complex variable control system,

provides cri-sp image and stabilized optic-axis in 110mm~1100mm focus length.

2. 640×512 HgCdTe cooled FPA detector provide high quality image.

3. Multi axis stabilization platform, combined with high accuracy gyro and servo control

system, ensures system have high accuracy stabilized tracking ability.

4. Portable CDU, easy operation.

5. Military standard components, high reliability, long lifetime enables working under

severe en-vironment for a long time.

6. Fully-sealed waterproof, optical-mechanical electronic integration design meets military standard.

Specifications:
