    High Accuracy Navigation Gyroscope

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : AINS-20
    Price : Negotation
    Payment Terms : L/C, T/T
    Supply Ability : 100Sets/year
    Delivery Time : 15days
    • Product Details
    • Company Profile

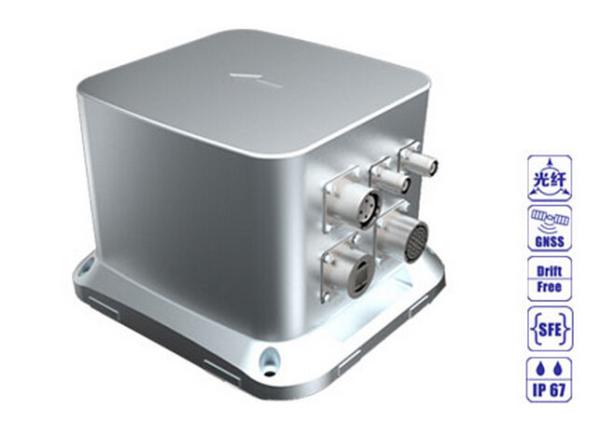

    High Accuracy Navigation Gyroscope

    High Accuracy Vertical Fiber Optic Gyro System for MEMS / GNSS Navigation


    Navigation Fiber Optic Vertical Gyro system


    Employing high accuracy FOG, Q-flex accelerometers, dual-frequency GPS position & orientation system, barometric altimeter and advanced integration navigation and attitude measurement algorithm, the performance of Attitude and Azimuth Integrated Navigation Fiber Optic Vertical Gyro has been dramatically improved. Combining built-in high accuracy IMU (inertial measurement unit) with satellite, it could output high accuracy position, speed, attitude, angular speed and acceleration information. While the satellite signal is completely covered, system would enter into pure inertial mode. By use of high accuracy FOG, it could still keep good attitude measurement accuracy in certain time. Integrated with barometric altimeter, it could make correction and get higher accuracy height information.

    Application
    Aircraft flight control and navigation
    Ship-borne & vehicle-borne navigation system
    Inertial stability control system
    E-traffic measurement system
    Industrial & agricultural measurement and application



    Technical Specifications


    Range
    Heading0~360°,
    Pitch angle±90°
    Roll angle±180°
    Angular rate±300°/s
    Acceleration±10g
    Positioning & orientation accuracy
    Heading accuracy (GPS valid)0.1° (length of baseline 2m, 1σ)
    Attitude (GPS valid)0.05° (1σ)
    Position accuracy (GPS valid)3m (CEP) , 2cm+1ppm(CEP) (post-differentiation)
    Velocity accuracy (GPS valid)0.1m/s (rms), (1σ)
    Preparation time
    Start time≤10s
    Stable timeSystem working normally after GPS and heading valid (specified time depends on surrounding environment, open field 2min)
    Power supply
    Power supplyDC12~32V, 24V±10% (rating)
    Power consumption≤25W
    Reliability
    MTBF2000h
    Continuous working time≥12h
    Physical parameters
    System weight≤3.6kg (excluding antenna and feeder line)
    Physical dimension191mm×166mm×131.5mm (X, Y, Z)
