    Anti Interference Integrated Fiber Optic Gyroscope

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : AINS-10
    Certification : CE
    Price : Negotation
    Payment Terms : L/C, T/T
    Supply Ability : 100Sets/year
    Delivery Time : 15days
    • Product Details
    • Company Profile

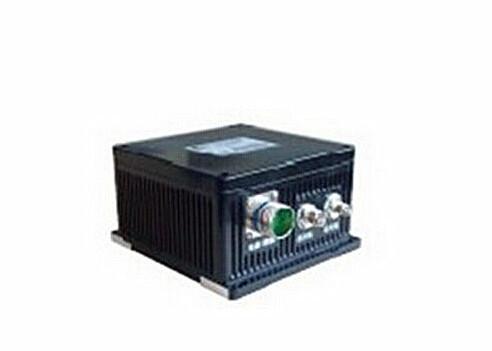

    Anti Interference Integrated Fiber Optic Gyroscope

    Anti-Interference Integrated Fiber Optic Gyro / Mechanical Gyroscope


    Product Description


    Featured with independent of outside information, excellent concealment, strong anti-interference, all weather operations, Attitude and Azimuth Integrated Navigation Vertical Fiber Optic Gyros is a complete autonomic navigation system which could provide diverse navigation parameters. However, its output error is accumulated along with time. Global position satellite (GPS) has higher navigation accuracy, but it is easy to be interfered, suffered from discontinuous output and incomplete output information etc. In order to integrate the advantages of these two navigation methods and effectively improve product performance, as well as strength product's reliability, availability, environment adaptability and dynamics, we utilizing multi-sensor data fusion technology to combine satellite positioning, orientation and inertial measurement, and release new attitude and position integration navigation system.



    Application


    Aircraft flight control and navigation
    Ship-borne & vehicle-borne navigation system
    Inertial stability control system
    E-traffic measurement system
    Industrial & agricultural measurement and application


    Range
    Heading0~360°,
    Pitch angle90°
    Roll angle180°
    Position accuracy2cm+1ppm
    Data
    Output frequency100Hz
    GPS data refresh rate5Hz
    Data storage abilityStorage system able to continuous working 8h
    Environment parameters
    Working temperature-40~+60 centigrade
    Storage temperature-45~+70 centigrade
    Humidity95% (30 centigrade )
    Vibration5g (20Hz~2kHz, random), 30min
    Shock30g (11ms, half-sine wave, 3 times for each axis)
    Salt sprayMeet GJB150 standard for ship cabin usage
    Reliability
    MTBF2000h
    Continuous working time≥12h
    Physical parameters
    System weight≤4.5kg (excluding antenna and feeder line)
    Physical dimension170mm×160mm×166mm
    Power supply
    Power supply10-32VDC, 26W, (self Li-on battery able to work continuous 8h)
    Fiber gyro
    Null bias stability0.5°/hr (1σ)
    Null bias repeatability0.5°/hr (1σ)
    Random walk coefficient0.05°/√hr
    Scale factory non-linearity100ppm (1σ)
    Scale factory repeatability100ppm (1σ)
    Dynamic range±300°/s
    Quartz accelerometer
    Bias<3mg
    Current scale factor1.2±0.15 mA/g
    Second-order nonlinear coefficient<50μg/g 2
    Scale factor/ Temperature coefficient<30 ppm/ centigrade
    Bias month stability<50μg
    Scale factor/month stability<30 ppm
    Bias temperature coefficient<±50μg/ centigrade
    Shock30g 11ms 1/2sin
    GPS
    Positioning & orientation time
    Positioning time typical value≤45s
    Orientation time typical value≤60s
    Reacquisition time<5s
    Positioning & orientation accuracy
    Heading accuracy0.1° (length of baseline 2m)
    Pitch angle0.2° (length of baseline≥2m
    Position accuracy2m CEP autonomous, no SA RTK 2cm+1ppm
    Velocity accuracy0.02m/s
    Timing accuracy50ns
