    Human-body Temperature Checking Infrared Imaging Thermal Camera Thermometer

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH513-B
    Certification : CE, SGS
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 1000Sets/Year
    Delivery Time : 15days after received payment
    • Product Details
    • Company Profile

    Human-body Temperature Checking Infrared Imaging Thermal Camera Thermometer

    Human-body Temperature Checking Infrared Imaging Thermal Camera Thermometer


    Introduction


    JH513-B Imaging Diagnostic Human-body Temperature Checking Infrared Thermal Camera is a new innovation in medical treatment, diagnosis the diabetes, arthritis, breast cancer etc just by scanning and do not radiate hazardous substance to human. High accuracy, powerful function and professional analysis software, JH513-B reports doctor professional inspection result. In addition, thanks for its non-contact and large area temperature measurement, it has been widely installed in hospital, clinics. It also has been successfully integrated into new generation thermal texture maps system for breast diagnosis, head &face, thyroid, Chest & abdomen, back, lower forelimb /lower hindlimb, Left & Right Lateral, pelvic diagnosis.


    FEATURES

    1. Clear and crisp images
    2. Ethernet remote transmission and control
    3. 2X real-time electronic zoom
    4. Auto shutter compensation
    5. Super low power consumption
    6. Professional and user-friendly analysis software

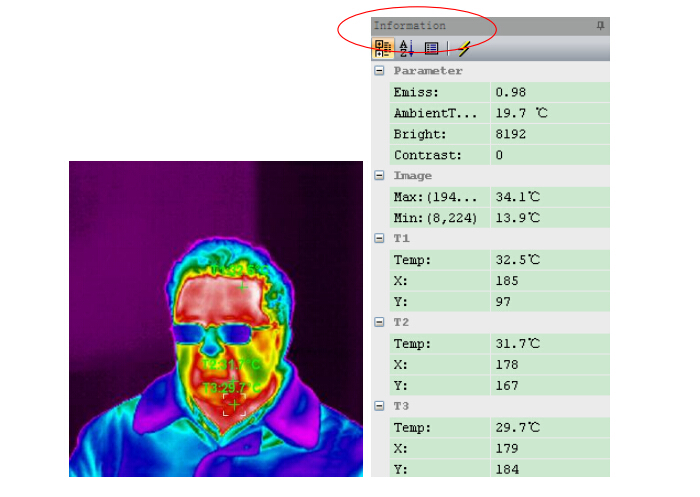

    7. Review the saved image and make analysis of spot, line, area.
    8. Generate professional inspection report

    Technical Parameters

    Detector
    Detector typeUncooled FPA
    Response spectral8~14μm
    Pixel336X256, 17μmx17μm
    Image Performance
    Lens28.6mm (F/1.2), motorized
    NETD50mK@30 ℃
    Frame rate25Hz
    Image Presentation
    Palette10 (Medical, Grey, Iron, Iron 10, Gradient, Midyellow, Midgreen, Rainbow, Midgray, Inverted gray)
    Zoom2X digital zoom
    Measurement
    Temperature range0℃~+60℃ (able to be customized)
    Alarming Temperature Range25℃~45℃(able to be customized)
    Temperature accuracy0.5℃
    Storage
    Storage mediumPC
    Image/ Video FormatBMP/IRM
    Ambient Parameters
    Operation temperature-20℃~+60℃
    Storage temperature-20℃ ~+60℃
    Interface
    Customized interfaceEthernet
    Physical Parameters
    Dimension125(L)× 95(W) × 160(H)mm
    Weight1.2Kg
    ColorBlack
