    Compact Uncooled VOx FPA Marine Thermal Imaging Camera

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH301
    Certification : ISO9001:2000
    Price : negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 1000Sets/Year
    Delivery Time : 15days after received payment
    • Product Details
    • Company Profile

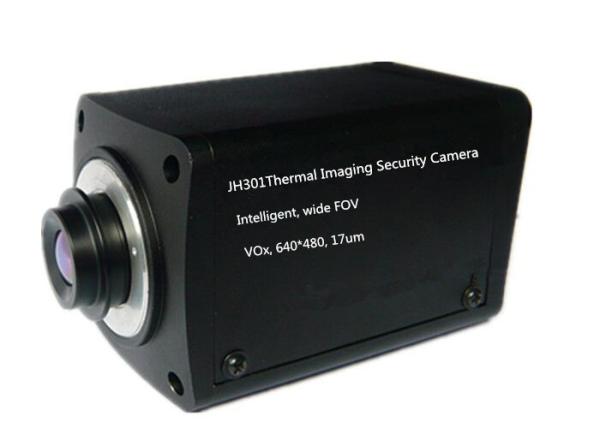

    Compact Uncooled VOx FPA Marine Thermal Imaging Camera

    Compact Uncooled VOx FPA Thermal Imaging Security Camera For UAV / SUAV


    Introduction


    Long Range Observation Uncooled Thermal Imaging Camera


    Applications


    Provide all-weather air surveillance thermal imaging camera for compact UAV in the fields of police& armed police, forest fire prevention and urban monitoring.


    Features

    • Compact structure, small volume and light weight.

    • Uncooled VOx FPA microbolometer, high sensitivity.

    • New generation of FPGA intelligent image processing platform.

    • Wide field range, long field depth, search and acquire the target comprehensively and fast.

    • Various control interface and image output interface, easy to integrate.

    • Scalable image storage and target lock-on functions.

    • Wide power supply range, low dissipation and short start time.


    Technical Parameters


    DETECTOR
    DetectorUncooled VOx FPA
    Pixel

    A mode:320x240

    B mode:640x512

    Pitch17μm(38μm)
    Spectral Band8μm~12μm
    Frame Frequency25Hz
    NETD

    A mode: ≤50mK(F/1)

    B mode: ≤60mK(F/1)

    Communication InterfaceRS232/RS422 Open Protocol
    POWER
    Starting Time<20s
    Average Dissipation≤1.8W
    Power InputDC7~12V
    LENS
    FOV12°x 9°/ 24°x 18°(specific wide angle 80°x60°)
    ENVIRONMENTAL
    Operating Temperature-40℃ ~ +60℃
    Storage Temperature:-50℃ ~ +70℃
    PHYSICAL
    Weight120g ( specific <90g)
    Dimension60.5mm x60.5mm x98.6mm
