    Rugged Dual FOV Ir Thermal Imaging Camera Military / Thermal Surveillance Camera

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH320-150/50
    Certification : ISO9001:2000
    Price : negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 500Sets/Year
    Delivery Time : 30days after received payment
    • Product Details
    • Company Profile

    Rugged Dual FOV Ir Thermal Imaging Camera Military / Thermal Surveillance Camera

    Rugged Dual FOV Ir Thermal Imaging Camera Military / Thermal Surveillance Camera

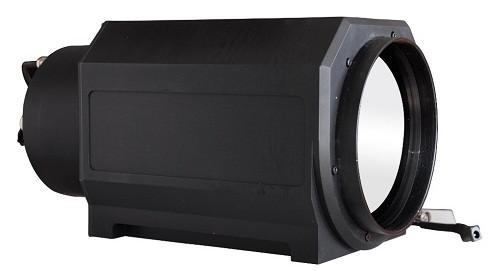

    JH320-150/50 Dual-FOV Long-range Surveillance IR Thermal Camera


    Introduction


    JH320-150/50 series is an extremely compact, durable uncooled thermal imaging camera operating in 8-14 um waveband. JH320-150/50 series has been designed for advanced security and surveillance, with the capability of DDE processing technology and advanced algorithm, it deliveries unmatched image quality. Equipped with Dual-FOV optics, the wide FOV is for find object in wide scope and then fast switch to narrow FOV capture target in details. JH320-150/50 is the optimal device for super long observation and target acquisition. Various lens optional are available, allowing for multi-missions.


    Applications

    • Land border and coastal surveillance
    • Marine navigation or rescue
    • Sea port, airport and train station monitoring
    • Building and industrial safety monitoring

    Features

    • New generation detector with high sensitivity
    • Advanced image processing (DDE/sharpening) technology
    • Standard and optional interfaces satisfy various need
    • Dual-FOV optics compact and rugged design
    • Wide choice of lens allows for multi-mission.

    Technical Parameters


    Detector
    Detector materialUncooled FPA
    Spectral range8~14μm
    Pixels

    A mode: 320x240

    B mode: 640x480

    Pitch

    A mode: 25μmx25μm

    B mode: 17μm x17μm

    NETD≤50mK@25°C
    Optics
    Lens150mm/50mm
    FOV

    3.06° x 2.29°

    9.15° x 6.87°

    4.15° x 3.12°

    12.42° x 9.33°

    FocusingMotorized
    Image Presentation
    Video output25Hz PAL/30Hz NTSC
    Electronic Zoomx2
    PolarityBH/WH
    Brightness & ContrastAuto/ Manual
    Gain CompositionAuto/ Manual
    Power system
    Power supply110~240VAC / 9~24VDC (typical: 12VDC)
    Power dissipation≤4W
    Interfaces
    Command interfaceRS232
    Digital video interface(Optional )Ethernet, Camera-link
    Environmental parameters
    Ambient temperature-40℃~+60℃
    Storage temperature-45℃~+60℃
    Physical parameters
    Dimension303mm*165mm*170mm
    Weight6.6kg
    ColorBlack
    Range performance
    Detection range>4km (2.3mx2.3m) , >3km (human)
    Recognition range>2km (2.3mx2.3m), >1.5km (human)
