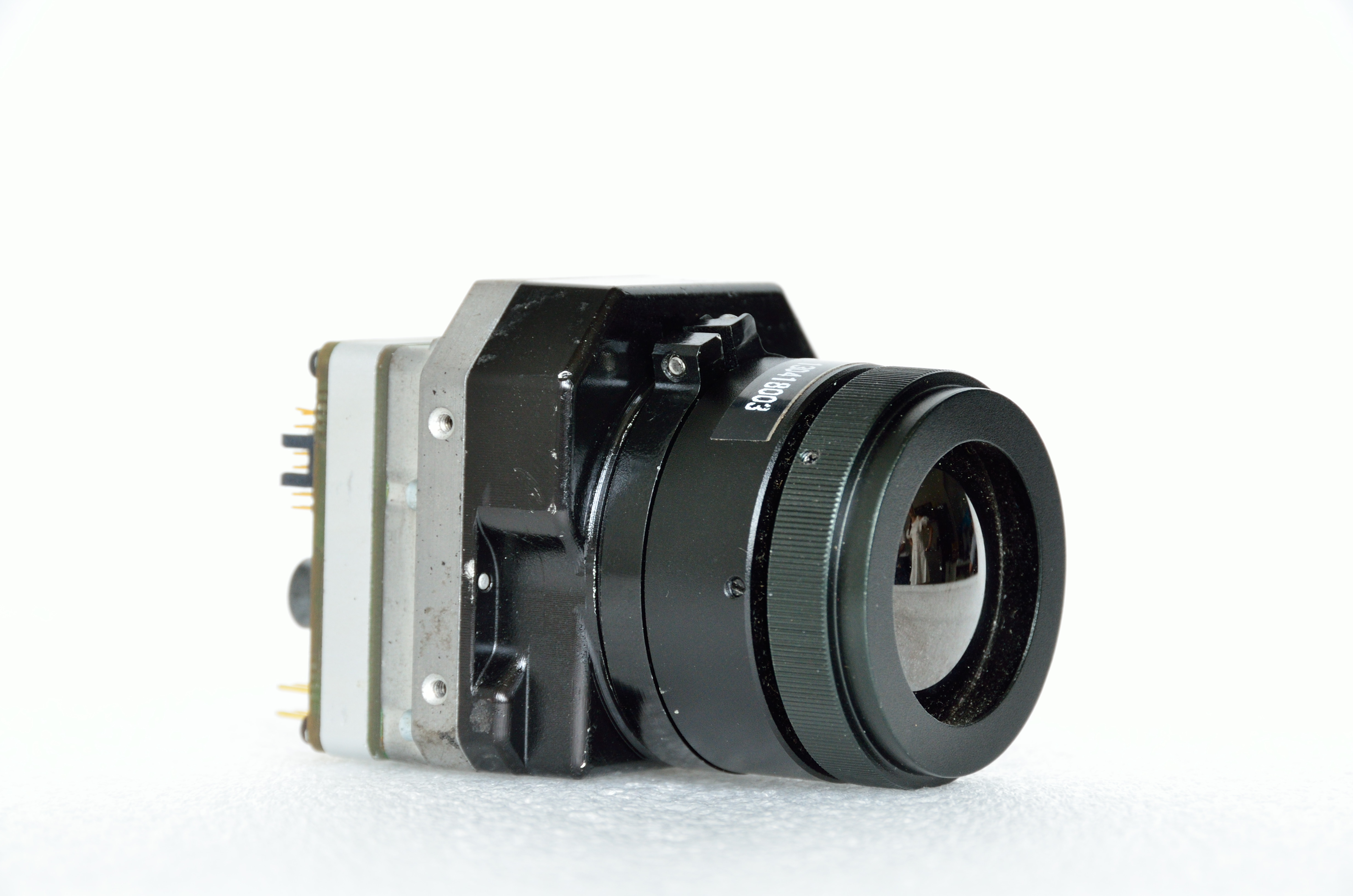

    Compact And Light Weight Infrared Camera Module

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH101-640A
    Certification : CE, ISO9001:2000
    Price : negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 1000Sets/Year
    Delivery Time : 7days after received payment
    • Product Details
    • Company Profile

    Compact And Light Weight Infrared Camera Module

    Compact Structure And Light Weight 17μm LWIR Thermal Imaging Camera Module Core For UAV


    FEATURES:


    • Uncooled VOx FPA Microbolometer, high sensitivity and high resolution.
    • New generation FPGA intelligent image processing provides clear image.
    • Multiple control interfaces and image output interfaces easy for integration.
    • Compact and light weight.
    • Wide power supply range, low power dissipation and short start time.

    APPLICATIONS:


    High resolution thermal imaging module for thermal camera


    TECHNICAL SPECIFICATION


    Detector

    Detector

    Uncooled LWIR VOx microbolometer

    Pixel

    640×512

    Pitch

    17um

    NETD

    camera≤60mk at f/1 , detector≤50mk at f/1

    Spectral band

    8~12um

    Frame frequency

    25Hz (PAL) / 30Hz(NTSC) (on request)

    Starting time

    <20s


    Polarity

    BH/WH

    Electronic Zoom

    ×2

    Manual gain

    Cycled adjustment

    Auto gain

    Auto adjustment

    Power

    Power supply range

    DC: +7V~+12V

    Power consumption

    <1.8W@25℃

    Output auxiliary power

    2-way 5V DC

    Reverse connection protection

    Yes

    Over/under-voltage protection

    Yes

    Environmental

    Operating temperature range

    -20ºC~+60ºC (optional -40ºC~+60ºC)

    Storage temperature range

    -50ºC~+70ºC

    Humidity

    5%~95% non-condensation

    Vibration & shock-resistance

    Vibration: GJB 150-16 2.3.1

    Axial shock: GJB 150-18 test: 7 100g/6ms

    Lateral shock: GJB 150-18 test: 5 40g/11ms

    Anti temperature shock

    -5ºC/min (-40ºC~+60ºC)

    Physical

    Weight

    ≤58g (lenless); ≤400g (with 50mm lens)

    Dimension

    44.5mm×44.5mm×40mm (lensless)

    Interface

    External power input interface

    yes

    Communication interface

    RS-232/RS422 (on request)

    Digital video output interface

    16Bit TTL/LVDS/Camera link (on request)
