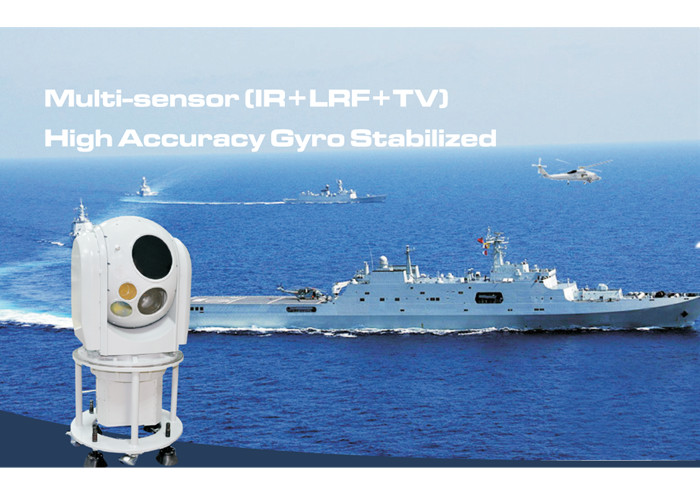

Shipborne EOS Multi Sensors Electro-Optical Infrared Camera Director System

JH602-300/75, as electro-optical director of the ship-borne whole system, it is equipped with a high resolution 640×512 MWIR thermal imager with 300/75mm Dual-FOV lens, a HD daylight camera and an 20km eye-safe laser range finder (ELR), capable of search, capture and tracking target independently for navigation auxiliary or integrate with CMS and slave to CMS, real-time report target position (azimuth and elevation angle) and distance data to CMS, as well as output LOS (line of sight) in the image. It utilizing 2-axis mechanism and built in high accuracy gyro enables video/image stabilization.

Function

• Detect, identify and record surface and air targets at day and night
• Measuring target distance
• Manual / Auto tracking target
• Report target position (azimuth angle and elevation angle) and distance data at high accuracy to CMS
• Receive target designation data from CMS
• Buil-in self-test and report self-test result

Features

• Integrated in multi-sensor (IR+TV+ELR)
• Built-in high integrated FPGA & DSP processor platform with fast processing and intelligent algorithm realizes real-time tracking
• Relative tracking and centroid tracking algorithm for customer option according to the physical circumstance to realize the high quality tracking
• Built-in high accuracy gyro stabilization to isolate ship disturbance and stabilize LOS.
• Two axis stable platform combining with high precision gyro and servo control system, ensures good image stability and high tracking precision.
• Military standard for long life under the severe environment

Technical specification
