    Electro Optical Uncooled Green LWIR Thermal Camera System Vehicle borne IR TV LRF

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JHS209-S80
    Certification : ISO9001
    Supply Ability : 50 Sets/Year
    Delivery Time : Two months
    • Product Details
    • Company Profile

    Electro Optical Uncooled Green LWIR Thermal Camera System Vehicle borne IR TV LRF

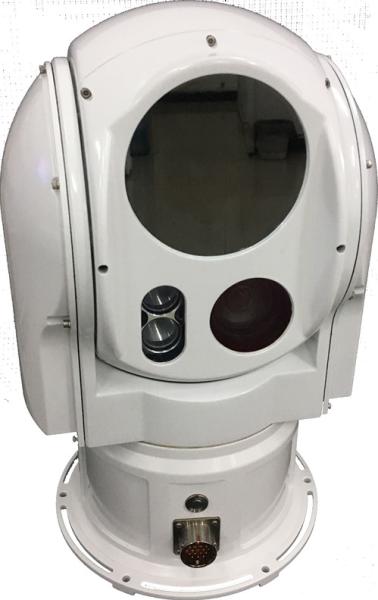

    Ship-borne Electro-optical Infrared (EO/IR) Tracking System JHS209-S80


    Capable of day& night monitoring, target searching and tracking, this ship-borne EO/IR system is widely applied for reconnaissance and surveillance, search and rescue, law enforcement, public security on patrolling boat, maritime surveillance ship, fishing boat etc.

    Main features

    1) Two axis image stabilization with high precision gyro and servo.

    2) Network communication by ground control station and image & video.

    3) Light weight, compact structure; strong adaptability & low consumption.

    4) Video tracking, manual/auto locking and tracking.

    5) High precision correction ensures consistent bore sight of CCD, IR, and LRF.

    6) Easy control operation via joystick and PC.

    7) Data feedback such as working mode, azimuth, elevation & FOV info.

    8) Highly integrated optical-mechanical-electrical design, strong endurance.

    Technical Specification


    THERMAL CAMERA
    DetectorUncooled FPA
    Pixel640*512
    Spectral band8μm~12μm
    Pixel17um
    Focal length80mm
    DAY LIGHT CAMERA
    Detector1/2.8" CMOS
    Focal length4.3~129mm, 30x
    Resolution198×1080
    LASER RANGE FINDER
    Wavelength1.06μm
    Ranging300m~5km (visibility 10km, 3m*3m target)
    Measurement accuracy≤ ± 5m
    SERVO
    Stabilization accuracy≤0.5mrad(1σ)
    Turret direction rangeazimuth:360° continuous; elevation:+60°~-60°
    TURRET MAXIMUM ANGLE SPEED
    Azimuth≥30°/s
    Pitch≥30°/s
    ENVIRONMENTAL
    Operating temperature range-20℃ ~ +40℃
    Storage temperature range-30℃ ~ +50℃
    Tracking
    Tracking speed≥2.5FOV/S
    Min tracking contrast ratio5%
    Dynamic tracking accuracysuperior to 1mrad
    POWER
    Power SupplyDC 24V
    PHYSICAL
    Dimension Turret≤ Φ220× 400mm
    Turret Weight≤ 10kg

    Remarks: communication and video interface can be tailored on customer request.
