    Mini Size G04-640 Core Thermal Imaging Camera Module

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : G04-640
    Certification : CE, ISO9001:2000
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100Sets/Year
    Delivery Time : negotiation
    • Product Details
    • Company Profile

    Mini Size G04-640 Core Thermal Imaging Camera Module


    Mini Size G04-640 Core Thermal Imaging Module For UAV , Infrared Camera Module 17um Pitch


    Technical Specification


    DETECTOR
    DetectorVanadium oxide uncooled FPA (domestic)
    Pixel640×512
    Pitch17um
    Spectral Band8um~14um
    Frame Frequency50Hz/25Hz
    NETD≤50mk(@F/1, 25℃)
    Cooling Down≤12s
    FUNCTION INTERFACE
    Video Output1 way, PAL
    Communication & Control InterfaceRS232/ I2C/ UART (optional)
    Shutter CalibrationAutomatic
    PolarityBH/WH; Pseudo
    Electronic Zoom×2/×4
    Cross Cursor DisplayOn/off
    Cross Cursor PositionAdjustable
    Image GainAdjustable
    Image BrightnessAdjustable
    Image enhancementAdjustable
    Power SupplyDC4V~5.5V or DC4V~19V
    Consumption<1.7W( full operating temperature with TEC)
    ENVIRONMENTAL
    Operating Temperature-40℃~+60℃
    Storage Temperature50℃~+70℃
    PHYSICAL

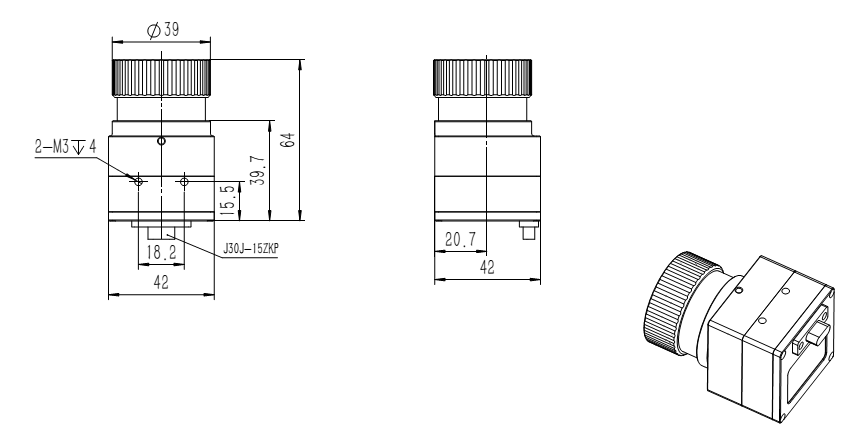

    Dimension35mm×35mm×35mm
    Weight≤82g (without lens)
