    MCT Detector Thermal Security Camera 640x512 Pixel And 15~300mm Continuous Zoom Lens

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JH640-300
    Certification : ISO9001:2000
    Price : negotiable
    Supply Ability : 100 set/ year
    Delivery Time : negotiable
    • Product Details
    • Company Profile

    MCT Detector Thermal Security Camera 640x512 Pixel And 15~300mm Continuous Zoom Lens

    MCT Detector Thermal Security Camera 640x512 Pixel And 15~300mm Continuous Zoom Lens


    JH640-300 thermal security camera is a matured and high reliable product developed by our company independently to meet military standard.It utilizes high-quality material and top-end manufacture technology.The thermal camera is featured by small size, high sensitivity, easy to control, long surveillance range, all weather operations and easy for integration.It adopts high sensitivity MWIR detector and 640x512 resolution for crispy image.In addition, continuous zoom lens 15~300mm can distinguish the human, vehicle and ships at long range.

    TECHNICAL SPECIFICATION


    Detector
    Detector ModelSCORPIOLEO
    Detector TypeMCT
    Spectral band3.7μm~4.8μm
    Pixel640×512
    Pitch15μm
    NETD≤20mK@25℃≤25mK@25℃
    Lens
    Focus length15mm~300mm continuous zoom
    F#4
    FOV1.83°(H) ×1.46°(V)~35.4°×28.7°(V)
    Function and Interface

    Frame frequency


    50Hz (optional 100Hz)
    Cooling time≤8min@room temperature
    Analog videoPAL
    Digital videoLVDS
    Communication & ControlRS232/RS422
    PolarityWH/BH
    E-zoom×2,×4
    Power supplyDC24~32V
    Power consumption

    ≤15W @ 25℃ steady work

    ≤30W @ 25℃ peak power

    Environmental specs
    Operation temperature-32℃~+55℃
    Storage temperature-40℃~+70℃
    Physical specs
    Weight≤2.6kg
    Mechanical drawingRefer to mechanical drawing

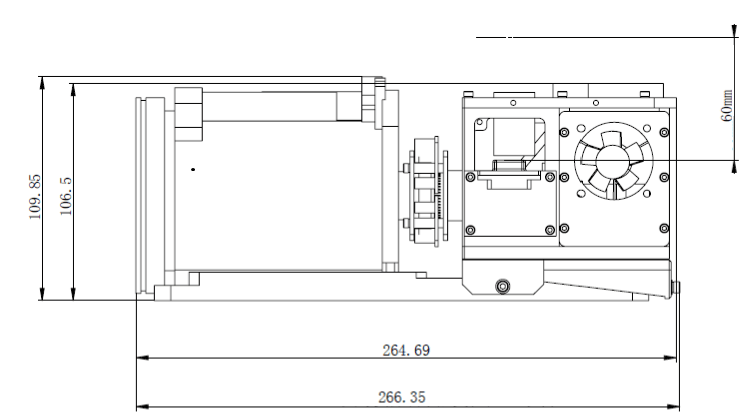

    Mechanical Drawing (SCORPIO detector)


    Mechanical Drawing (LEO detector)
