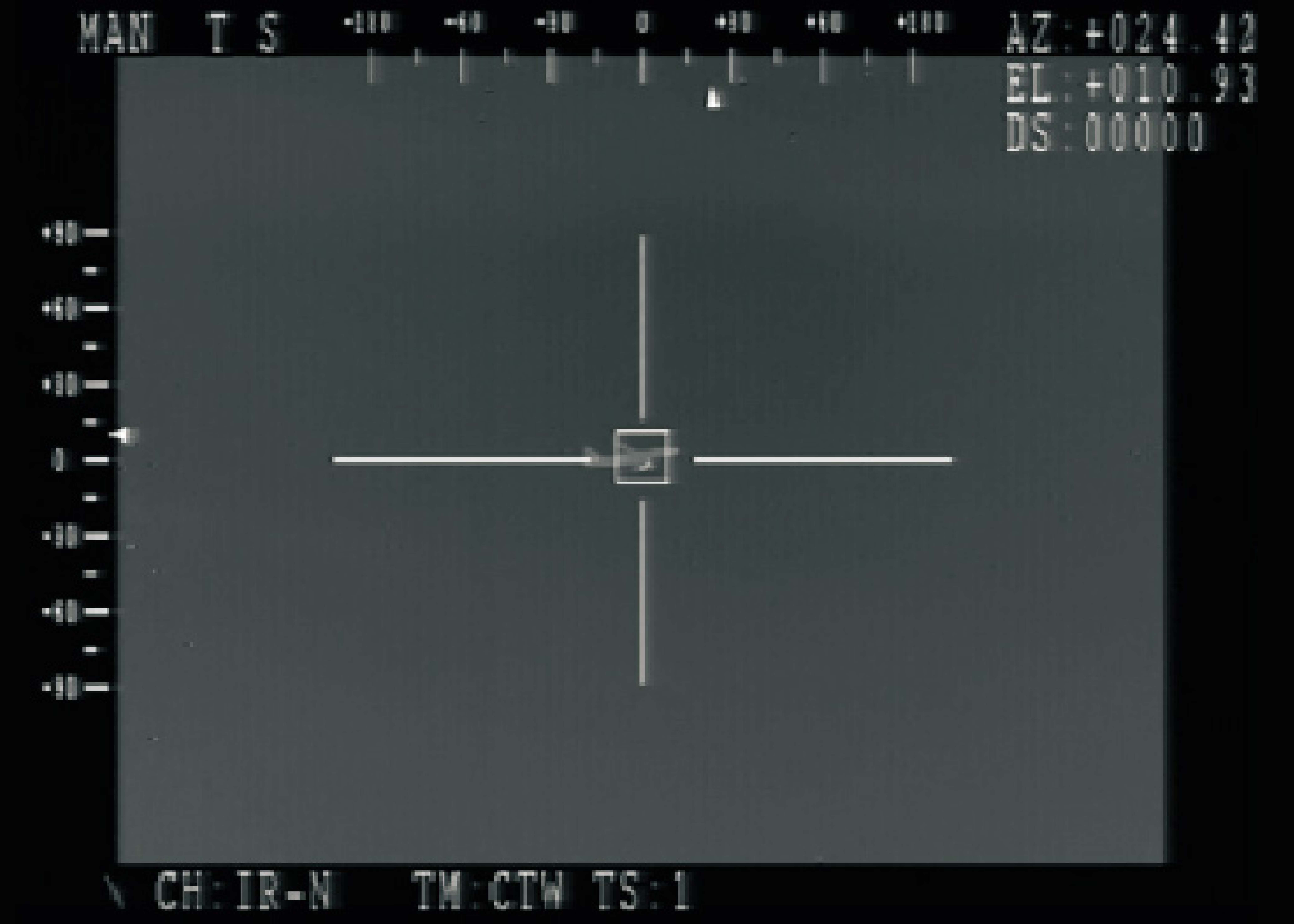

JH602-300/75, as electro-optical director of the ship-borne whole system, it is equipped with a high resolution 640×512 MWIR thermal imager with 300/75mm Dual-FOV lens, a HD daylight camera and an 20km eye-safe laser range finder (ELR), capable of search, capture and tracking target independently for navigation auxiliary or integrate with CMS and slave to CMS, real-time report target position (azimuth and elevation angle) and distance data to CMS, as well as output LOS (line of sight) in the image. It utilizing 2-axis mechanism and built in high accuracy gyro enables video/image stabilization.
Ideal for Ship
Function
Detect, identify and record surface and air targets at day and night
Measuring target distance
Manual / Auto tracking target
Report target position (azimuth angle and elevation angle) and distance data at high accuracy to CMS
Receive target designation data from CMS
Buil-in self-test and report self-test result

Features
Integrated in multi-sensor (IR+TV+ELR)
Built-in high integrated FPGA & DSP processor platform with fast processing and intelligent algorithm realizes real-time tracking
Relative tracking and centroid tracking algorithm for customer option according to the physical circumstance to realize the high quality tracking
Built-in high accuracy gyro stabilization to isolate ship disturbance and stabilize LOS.
Two axis stable platform combining with high precision gyro and servo control system, ensures good image stability and high tracking precision.
Military standard for long life under the severe environment

Technical specification
