    Marine Long Range Surveillance EO IR Camera Thermal Imager 110-1100mm continuous lens

    Ask Lasest Price
    Brand Name : Wuhan Joho
    Model Number : JH602-1100
    Certification : ISO, SGS
    Price : negotiable
    Supply Ability : 500pcs per year
    Delivery Time : 4 month
    • Product Details
    • Company Profile

    Marine Long Range Surveillance EO IR Camera Thermal Imager 110-1100mm continuous lens

    Marine Long Range Surveillance EO IR Camera Thermal Imager 110-1100mm continuous lens

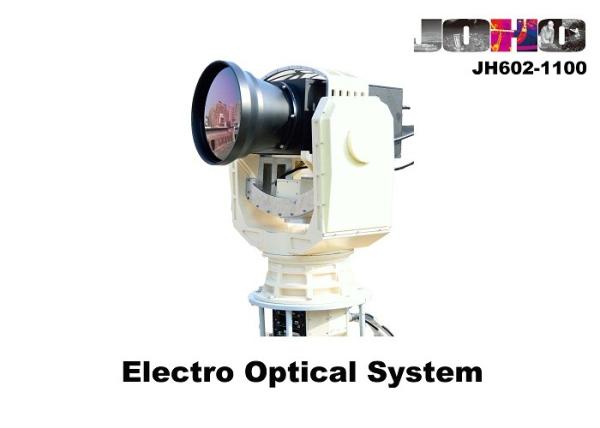

    JH602-1100 electro-optical infrared (EO/IR) tracking camera system is equipped with a high resolution 640x512 HgCdTe MWIR cooled thermal camera with 1100~110mm continuous zoom lens which
    offers super long range security and surveillance application, capable of observation,
    recognition, aiming and tracking target at day and night. JH6021100 system can work
    independently for ship navigation and surveillance at night, or integrated into a larger
    surveillance system, capable of receiving slaving instruction from radar.


    FUNCTIONAL AREA
    n Day and night search targets in specified area
    n Day/night detection, recognition and identification on specified target
    n Isolate carrier (ship) disturbance, stabilized the LOS (line of sight)
    n Manual/auto tracking target
    n Real-time output and display LOS area
    n Real-time report captured target azimuth angle, elevation angle and angular speed information.
    n System POST (power-on self-test) and feedback POST result.

    TECHNICAL DATA
    THERMAL CAMERA
    DetectorCooled HgCdTeFPA
    Pixel640×512
    Spectral band3.7μm~4.8μm
    FOV0.5°×0.4°~5°×4° with 1100~1100mm continuous zoom lens
    Optical-axis parallelism≤1pixel
    Electronic zoom2× (optional: 4×)
    SERVO
    Stabilization accuracy≤0.15mrad(1σ)
    Turret direction rangeAzimuth: 0~330° (optional n×360°);
    Elevation: -20°~+75°
    Turret maximum angle speedAzimuth: >50°/s; Elevation: >50°/s
    Tracking modeCTW, CTB, COT
    Video signal formatstandard CCIR
    Data rate50Hz,100Hz
    CommunicationRS422
    POWER
    Input voltageDC24V/15A, 220VAC
    Consumption96W (average); 240W (maximum)
    ENVIRONMENTAL
    Operating temperature range-40ºC~+60ºC
    Storage temperature range-50ºC~+70ºC
    PHYSICAL
    Dimension700mm × 700mm × 1050mm (system)
    400mm × 300mm × 190mm (CDU)
    Weightapprox. 127kg (Camera); 10kg(CDU)
