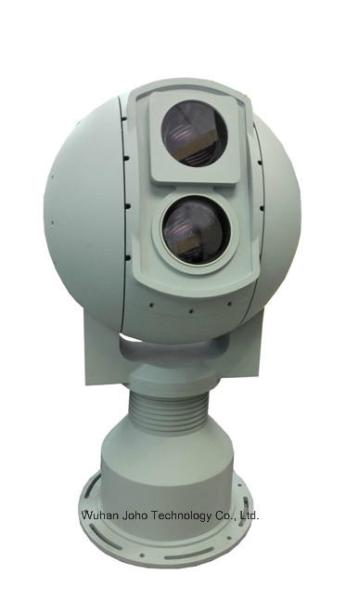

    PTZ Electro Optical Infrared Tracking System Border / Coastal Surveillance

    Ask Lasest Price
    Brand Name : Wuhan Joho
    Model Number : JH320-15075
    Certification : SGS, ISO9000
    Price : negotiable
    Supply Ability : 500 sets per year
    Delivery Time : 3 month
    • Product Details
    • Company Profile

    PTZ Electro Optical Infrared Tracking System Border / Coastal Surveillance


    PTZ Electro Optical Infrared Tracking System Border / Coastal Surveillance


    JH320150/75 is an intelligent IP network establish a "virtual fence" near the coast/border to detect intruders before they reach. It is equipped with a long range thermal camera
    and 60x day light camera to observe intruders and other threats from the sea or border
    in total darkness and bad weather. This system is either to be used as independent or
    connecting with radar under "slaving mode", capable of automatically turn to target
    designation area.This system adopts high speed fiber optic data transmission to ensure continuous video record at long range.



    FEATURES
    Configurable sensor and lens to satisfy various missions
    Continuous zoom and adjustable focusing speed is available
    High precision turret position, less than 0.1 deg
    Simple connection camera system over Ethernet
    IP66 protection against dust and water ingress, resist to corrosion, tarnishing, salt fog
    Modular design, easy for repair and upgrade



    TECHNICAL SPECIFICATION

    Thermal Camera
    DetectorUncooled VOx FPA
    Pixel324×256
    Spectral Band8~14μm
    FOV3.1°×2.4°~15.2°×12.2°
    IFOV0.17~0.83mrad
    NETD≤50mK@F1.0, 300
    Day Light Camera
    Focal Length12.5~750mm, 60× zoom
    FOV0.5°~28.7°
    F#F3.8~F22.C
    Sensor1/1.8" Progressive Scan CMOS
    Video ControlAGC, AWB, support day/night mode switch auto/manual
    Resolution1080p, Support three bit stream
    Turret
    Pan Range360°
    Tilt Range-80°~+80°
    Pan Speed0.1°~30°/s
    Tilt Speed0.1°~30°/s
    AccelerationMax: 40°/s2
    ProtocolPelco-D, Pelco-P
    Baud Rate2400/4800/9600/19200bps
    Environmental
    Operating Temperature-40ºC~+60ºC
    Storage Temperature-50ºC~+70ºC
    ProtectionIP66
    Salt FogPH6.5-7.2, 48hours continuous spray
    Power
    Power SupplyDC24V
    Consumption180W
    Physical
    Weight110kg
    Size605mm×605mm×1160mm (L×W×H)
    Application EnvironmentOutdoor
