    JH640-690 MWIR MCT Cooled Long Range Thermal Security Camera

    JH640-690 MWIR MCT Cooled Long Range Thermal Security Camera


    JH640-690 Thermal Security Camera is equipped with a high resolution 640x512 pixel MWIR Cooled FPA and 34mm~690mm continuous zoom lens which effectively distinguish targets such as long range human, vehicle and ship.


    Technical Specification

    ModelJH640-690
    DetectorCooled FPA MCT
    Resolution640×512, 15μm
    Spectral band3.7~4.8μm
    NETD18mk@25℃
    CoolingStirling cooler
    Lens
    Focus length

    34mm~690mm

    continuous zoom

    F number4
    FOV

    0.80° (H)×0.64° (V)~

    15.9° (H)×12.7° (V)

    Function and Interface
    Auto focusYes
    Lens compensationYes
    Frame frequency (digital video)50Hz (100Hz is able to be customized)
    Analog videoPAL
    Digital videoLVDS
    Communication controlRS232/RS422 on request
    Shutter calibrationManual/auto
    Background calibrationYes
    Polarity settingBH/WH
    Electronic zoom×2, ×4
    Reticle DisplayON/OFF
    Reticle PositionAdjustable
    Image GainAdjustable
    Image BrightnessAdjustable
    Image enhancementAdjustable
    Image reverseVertical/ horizontal
    Power specification
    Power supplyDC24~36V
    Power consumption≤10W@25℃
    Environmental specification
    Operation temperature-32℃~+60℃
    Storage temperature-40℃~+70℃
    Vibration testGJB150.16-86/MIL-STD-810F-514.5
    Shock testGJB 150.18-96 /MIL-STD-810F-516.4
    High temperature testGJB150.3-86/MIL-STD-810F-501.4
    Low temperature testGJB150.4-86/MIL-STD-810F-502.4
    Physical Specification
    Weight≤9.4kg

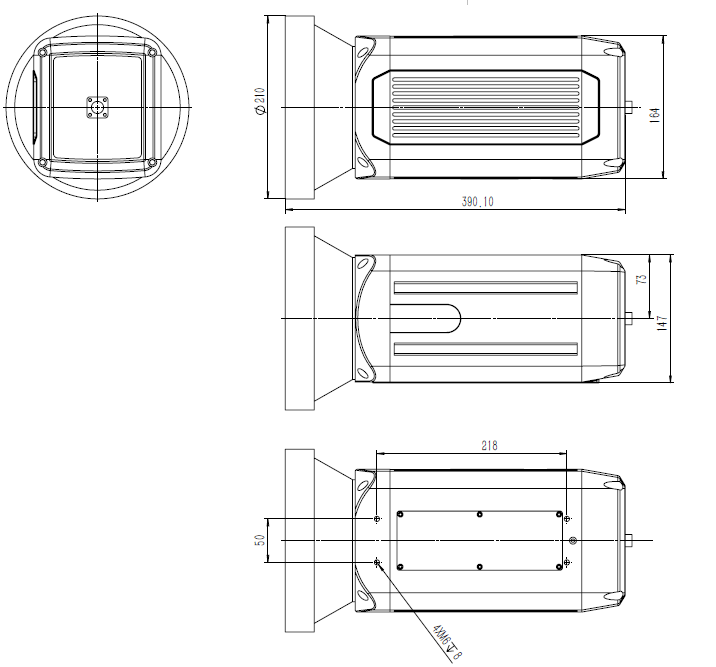

    Dimension400mm×220mm×220mm
